Using Key Switch and Headlights

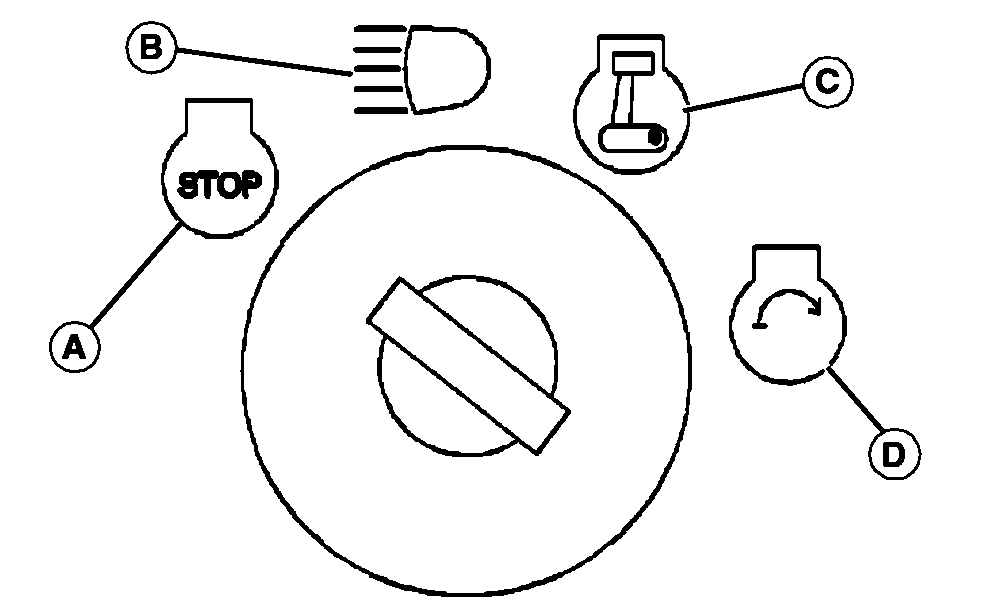

GXAL41992-UN-04MAR13

A - STOP Position

B - HEADLIGHTS ON Position

C - RUN Position

D - START Position

Engine Off

Headlights will drain the battery rapidly if key switch is left in headlights on position (B) with the engine off.

• To turn on headlights, turn the key switch to HEADLIGHTS ON position (B).
• To turn off headlights, turn the key switch to STOP position (A).

Engine On

• To turn on headlights, start engine, then turn key switch from RUN position (C) to HEADLIGHTS ON position (B).
• To turn off headlights, turn the key switch from HEADLIGHTS ON position (B) to RUN position (C).
