Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See the relevant SAFETY LABEL section):

1.

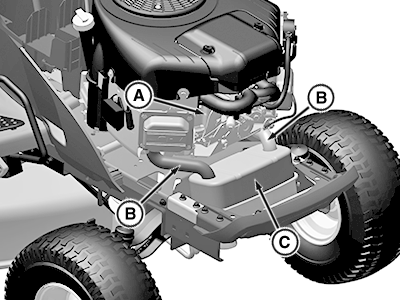

   PY24570-UN-03JUL15

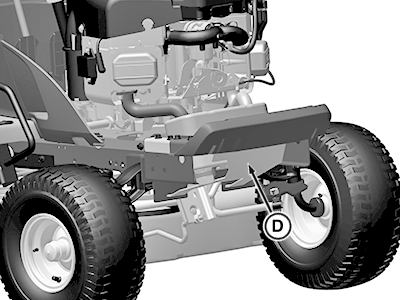

   PY24571-UN-03JUL15

   Exhaust manifold (A), muffler pipe (B), muffler (C), and muffler shield (D).

---




2.

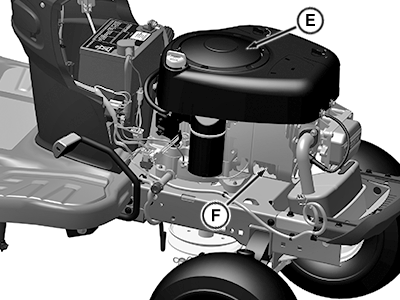

   PY35576-UN-29MAY17

   Engine intake screens (E), cooling fins (F), and oil cooler (if equipped).

---




3.

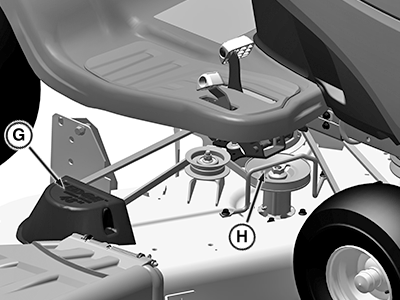

   PY43269-UN-29MAY17

   Top of mower deck, under shields (G), including spindle (H) and belt areas.

---




4.

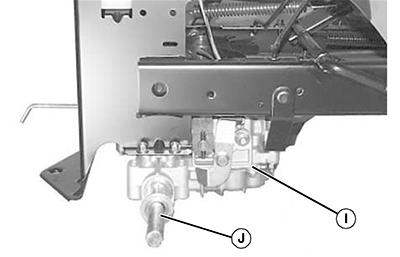

   GXAL41972-UN-04MAR13

   Shown with Wheel Removed

   On or near transmission (I) and driveline (J).

---




5.

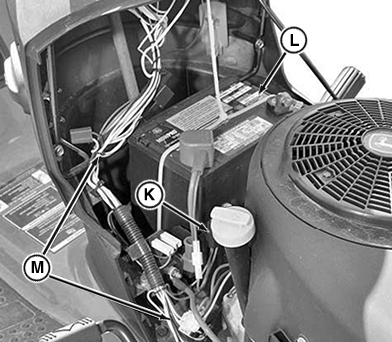

   APY08951-UN-18JUL18

   Under left side panel near fuse block (K) and all wiring, including the battery (L) and related wiring harnesses (M).

---
