Adjusting M Series Seat

1. Sit on operator seat.

2.

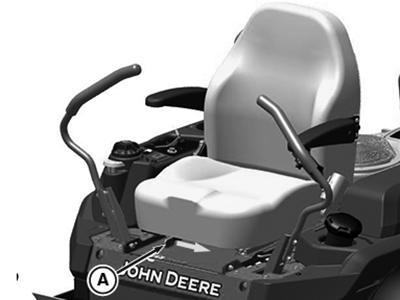

   APY04431-UN-08AUG18

   Adjust seat position:

   1. Pull and hold the seat adjustment lever (A) to middle of seat.

   2. Slide forward or backward to desired position.

   3. Release lever.

---




3.

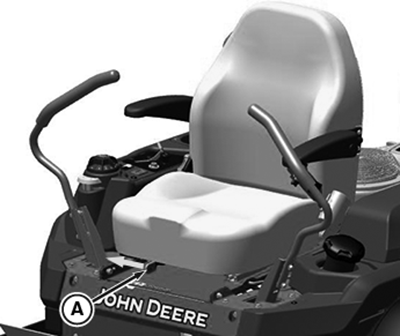

   APY04432-UN-08AUG18

   ComfortGlide™ seat feature:

   1. Push lever (A) to outside of seat to allow seat float feature.

   2. Pull lever to middle of seat to disengage/lock float feature.

   3. If float position does not disengage, rise off seat and pull lever to middle of seat.

---




4. Release lever.
