Adjusting R Series Suspension Seat

Adjust Seat Position

1. Sit on operator seat.

2.

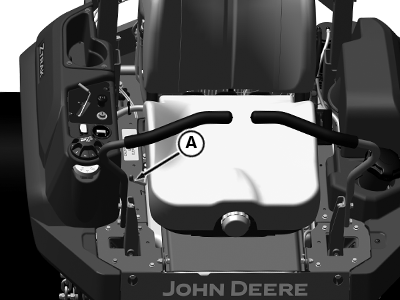

   APY11756-UN-08AUG18

   Pull and hold seat lever (A) towards the middle of the seat.

---




3. Slide forward or backward to desired position.

4. Release lever.

Adjust Ride Comfort

1.

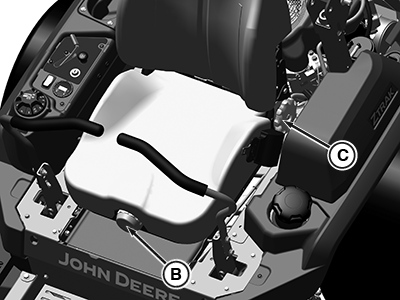

   APY11759-UN-08AUG18

   Adjust seat weight knob (B) to the weight of the operator.

---




2. Turn knob (C) to adjust the desired seat back position.
