Adjusting Mower Deck - All Models
Rotating blades are dangerous. Before adjusting or
servicing mower:
-
Disconnect spark plug wire(s) or battery negative (-) cable
to prevent engine from starting accidentally.
-
Always wear gloves when handling mower blades or working near
blades.
Mower deck anti-scalp wheels should not contact the ground
while adjusting deck.
-
Park machine safely. (See Parking Safely in the SAFETY section.)
-
Avoid machine damage, adjustment will be inaccurate
if tires are not properly inflated.
Inflate tires to the correct pressure and be sure that left
and right tire pressures are equal.
-
Raise the mower deck to the transport position.
-
Inspect mower blades for:
-
Blade sharpness.
-
Blade damage.
-
Bent blades.
Checking Level and Height of Cut
Mower deck anti-scalp wheels should not contact the ground.
-

APY04475-UN-02JUL18
Adjust the cut adjustment knob (A) to align cut height position
3 (B) to index mark (C) to get the required cut height.
-

APY04476-UN-02JUL18

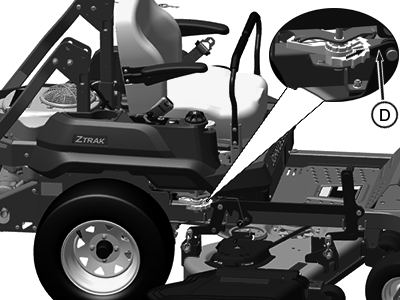

Confirm that cutting height is at position 3 by checking
that the deck height position finger (D) on the lift shaft is aligned
with the lobe labeled 3.
-

APY11764-UN-10AUG18

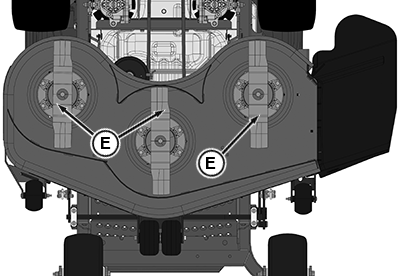

Make sure that mower blades (E) are in straight forward (front-to-rear)
position.
-
Use a short ruler or a leveling gauge (Part No. AM130907)
(F) to check the mower blade level.

TCT011308-UN-18JUN15

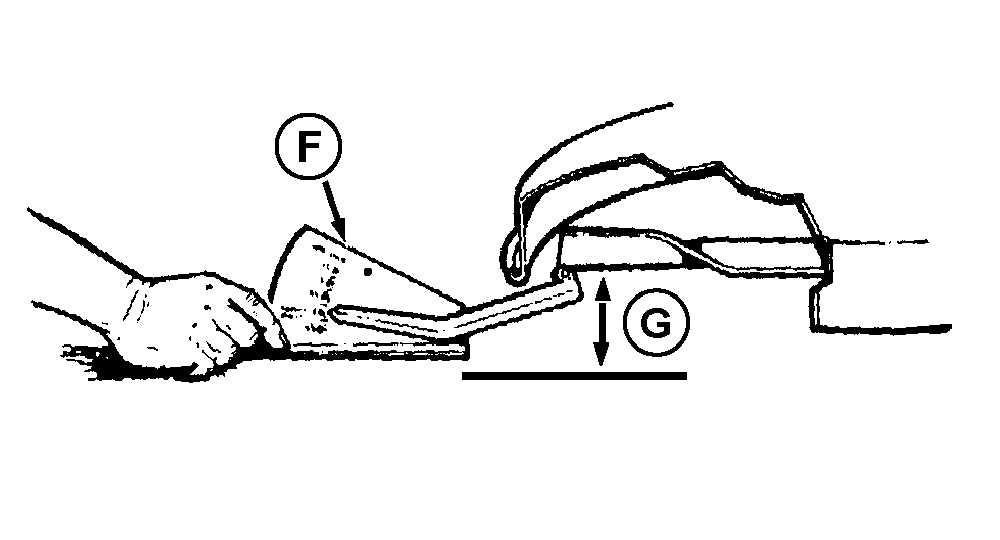

Measure the distance (G) from the front blade tip to the
ground for all three blades. The front blade tip should be within
specification from the ground.
| | |
|
Front Blade Tip | Distance | 76 mm (+/- 3 mm) (3 in. +/- 1/8 in.) |
If distance is incorrect, see Adjusting Blade Tip Height. If
it is correct, move on to Checking Blade Rake (Front to Rear Height).
Adjusting Blade Tip Height

APY04477-UN-02JUL18

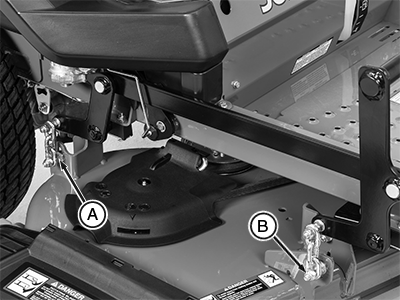

Right Side Front and Rear Chain Links Of The Model
Is Shown

APY04478-UN-02JUL18

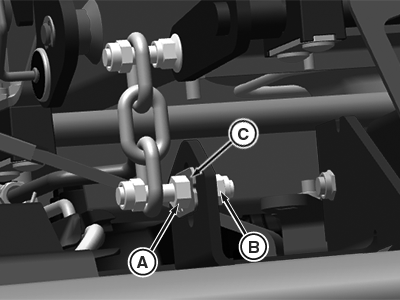

Front Right Chain Link Is Shown For Adjustment
Of Right Blade Tip Height Adjustment
-
Loosen nut (B) using a 15 mm wrench.
-
Using the open end of a 16 mm wrench on hex fastener (A), raise
or lower the deck as needed so the blade tip meets specification.
| | |
|
Front blade tip height | Distance | 76 +/- 3 mm (3 +/- 1/8 in.) |
-
When deck is at required position, tighten nut (B) to specification.
| | |
|
Jam nut | Torque | 48 N·m (35 lb·ft) |
-
Repeat the same procedure in front left chain link for left
blade tip height adjustment.

APY04480-UN-02JUL18

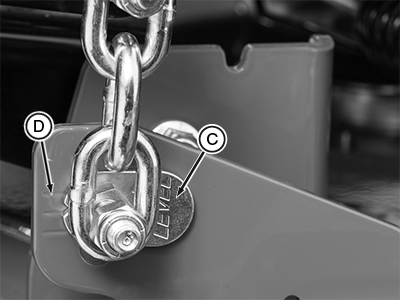

The marks (D) on the deck hanger brackets line up with
the notch in leveling plate (C), use them as an indicator during adjustment.
The marks are 6 mm (1/4 in.) apart from each other.
Checking Blade Rake (Front to Rear Height)
-
If an adjustment was made to the front blade tip height,
then check the blade rake.
Lower mower deck to 76 mm (3 in.) cutting height position.
-
Position right mower blade (discharge side) in straight forward
(front-to-rear) position.
-
Measure from the right front blade tip to the ground.
-
Turn blade one hundred eighty degrees and measure from right
rear blade tip to the ground.
-
Use a short ruler or a leveling gauge (Part No. AM130907)
(C) to check the mower blade level.

TCT011309-UN-18JUN15

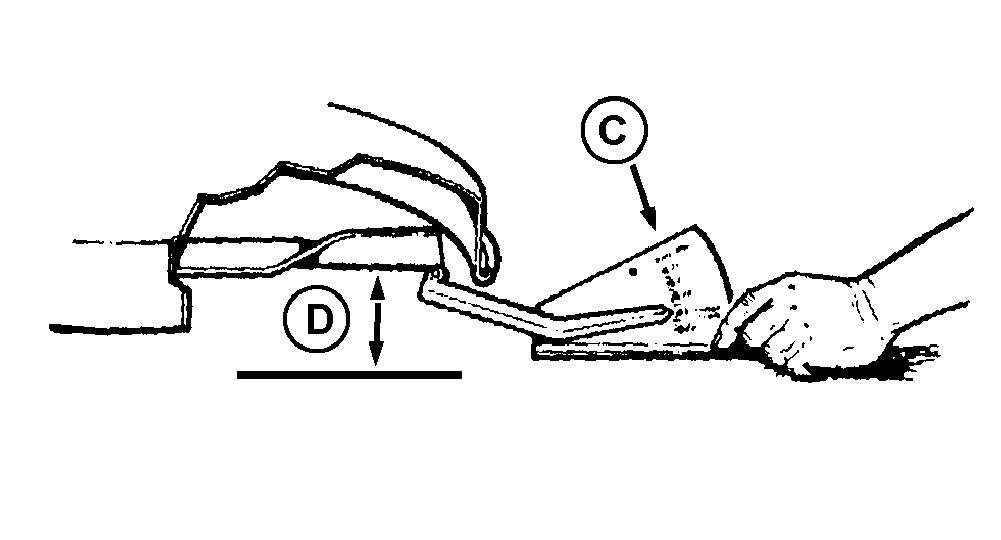

The height (D) of the rear blade tip should be 3--6 mm (1/8--1/4
in.) higher than the front blade tip.
-
Repeat steps 1--5 for left and center blade.
-
If the blade rake is not within the given tolerance then further
adjustment is necessary.
Adjusting Blade Rake (Front-to-Rear)

APY04479-UN-02JUL18

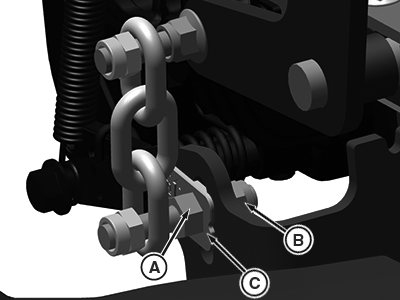

Rear Right Chain Link Is Shown For Right Blade
Rake Height Adjustment
-
Loosen nut (B) using a 15 mm wrench.
-
Using the open end of a 16 mm wrench on hex fastener (A), raise
or lower the deck as needed so the rear blade rake height is 3--6
mm (1/8--1/4 in.) higher than the front blade tip.
| | |
|
Front blade tip height | Distance | 76 +/- 3 mm (3 +/- 1/8 in.) |
-
When deck is at required position, tighten nut (B) to specification.
| | |
|
Jam nut | Torque | 48 N·m (35 lb·ft) |
-
Repeat the same procedure in rear left chain link for adjustment
of left blade rake height adjustment.

APY04480-UN-02JUL18
The marks (D) on the deck hanger brackets line up with
the notch in leveling plate (C), use them as an indicator during adjustment.
The marks are 6 mm (1/4 in.) apart from each other.
|
|
MG39705,00000B8-19-20180830
|
|
