Transporting Machine on a Trailer

Use a heavy-duty trailer to transport your machine. Trailer must have signs and lights required by law.

Trailer capacity must exceed combined machine weight and attachment weight. (See SPECIFICATIONS section in Operator’s Manual).

  1. Use extra care when loading or unloading the machine onto a trailer or truck. Machine wheels can go off the ramp or trailer, causing the machine to tip over.

    • To load, move the machine back slowly in a straight line. Keep wheels away from drop-offs and edges.

    • Do not use two separate loading ramps. Use a full width loading ramp at least 30 cm (12 in.) wider than machine to keep caster wheels from going off the ramp edge.

    • Use a trailer with sides.

    • Ensure ROPS is pinned in the upright position.

    Park trailer on level surface.

  2. Raise mower deck to the transport position.

  3. TCAL43494
    TCAL43494-UN-21MAR13

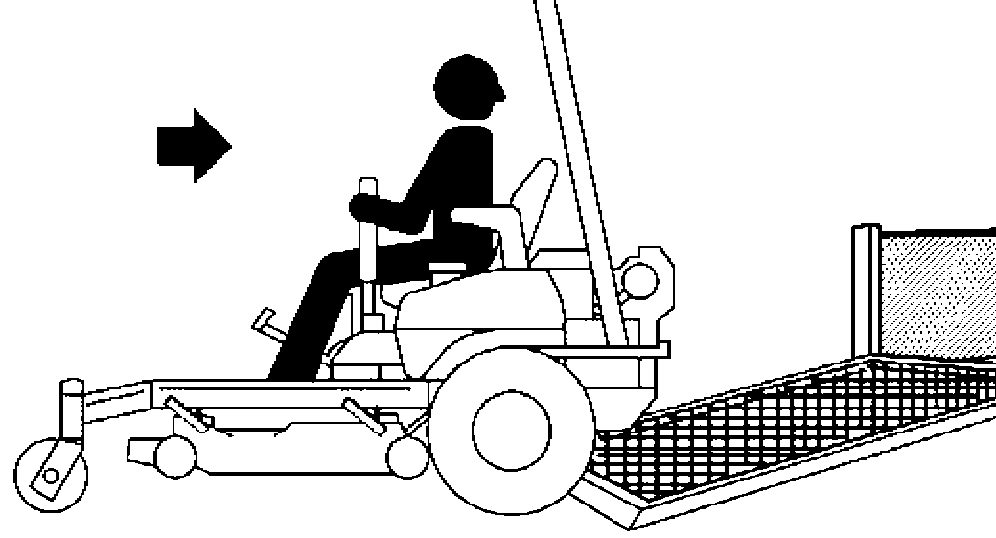

    Back machine onto heavy-duty trailer with full-width ramp.


  4. Stop engine and lock park brake.

  5. Lower mower deck completely.

  6. Remove key.

  7. APY04495
    APY04495-UN-05JUL18

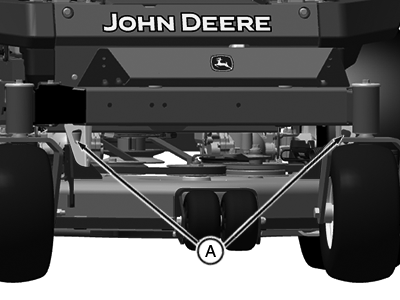

    Front View (Z700) Shown

    Fasten front of machine in elongated holes (A) at both sides of the frame to trailer with heavy-duty straps, chains, or cables. Straps must be directed down and outward from machine.


  8. APY04496
    APY04496-UN-05JUL18

    Rear Bottom View (Z700)

    Fasten rear of machine at both sides of frame at points (B) to trailer with heavy-duty straps, chains, or cables. Straps must be directed down and outward from machine.

MG39705,00000C2-19-20180830
