Raising and Lowering ROPS

Always wear seat belt when operating machine with folding Roll-Over Protective Structure (ROPS) in upright position. Do not jump from machine if machine tips.

If ROPS must be folded to operate in a low clearance area, do not use seat belt. Raise ROPS and use seat belt as soon as conditions permit.

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

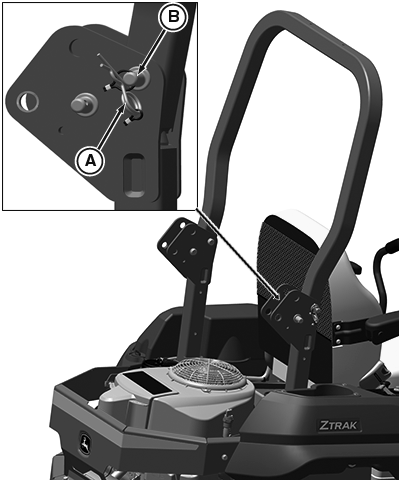

  2. APY04497
    APY04497-UN-12JUL18

    Remove spring pin (A) from the drilled pin (B) on left and right sides of ROPS.


  3. Remove drilled pin from left and right sides of ROPS.

  4. Fingers and hands can be pinched or crushed. Be aware of potential pinch points and keep hands away.

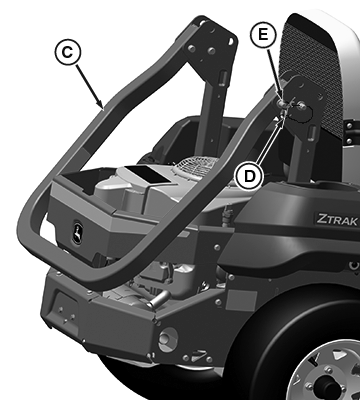

    APY04498
    APY04498-UN-12JUL18

    Pull ROPS rearward to lowered position (C).


  5. Install drilled pins (E) and spring pins (D) back into holes in ROPS to secure in place.


Placing ROPS into Intermediate Position

When a Material Collection System attachment is installed, the ROPS cannot be fully lowered. If the ROPS must be lowered, place it into the intermediate position.

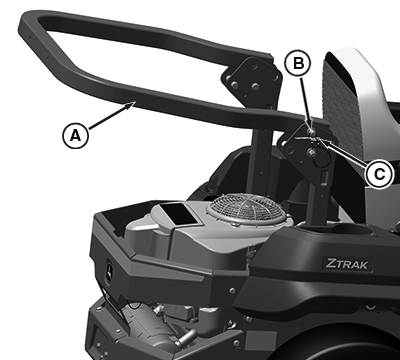

APY04499
APY04499-UN-12JUL18

  1. With the spring pins and drilled pins removed, lower the upper ROPS (A) rearward and install drilled pins (B) and spring locking pins (C) to secure position.

  2. Repeat for the other side of ROPS.

MG39705,00000CE-19-20180712
