Using Indicator Lights

Z700E and Z700M Series

APY04433
APY04433-UN-18JUL18

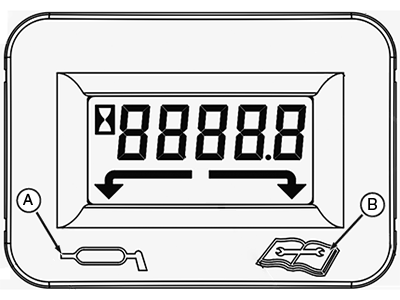

The E and M Series Machines are equipped with an Hourmeter and Service Interval Reminders. The reminders are as follows:

A - Lubrication Service Indicator illuminates at 25-hour intervals (25, 50, 75, 100, and so on)

B - Maintenance Service Indicator illuminates at 50-hour intervals (50, 100, 150, 200, and so on)

Service Interval indicators last for an hour starting 1/2 hour before interval and ending 1/2 hour after interval. Both service indicators will illuminate after the first 8 hours of machine use then will follow the above intervals.

Z700 R Series

APY04434
APY04434-UN-16JUL18

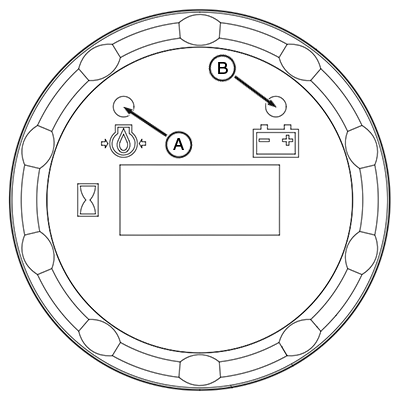

The R-Series Machine is equipped with an Hourmeter and warning indicators as follows:

  • Engine Oil Pressure Indicator Light (A) will glow when engine oil pressure is low. If light glows when engine is running, stop engine and consult your John Deere dealer.
  • Engine Low Voltage Indicator Light (B) will glow when the battery voltage is below 11 volt.
