Adjusting Ride Comfort (E Series and M Series)

Avoid damage! To prevent damage to seat switch and seat base, do not operate without suspension coils in place.

1. Lift seat.

2.

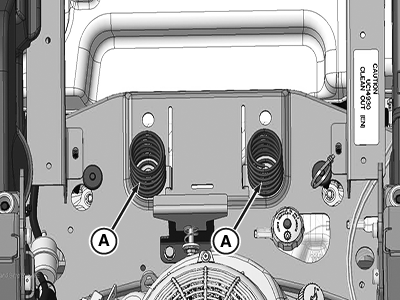

   APY08088-UN-13JUL18

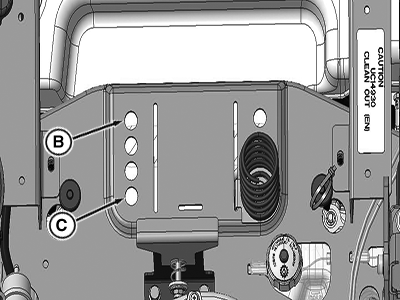

   APY08089-UN-16JUL18

   Pivot spring assemblies (A) up and move into desired position:
   • Move coils forward (B) for softer ride.
   • Move coils rearward (C) for firm ride.



---

Additional suspension coils can be installed for extra support. Consult your John Deere distributor.
