Removing and Installing Engine Access Grille

Touching hot surfaces can burn skin. The engine, components, and fluids will be hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

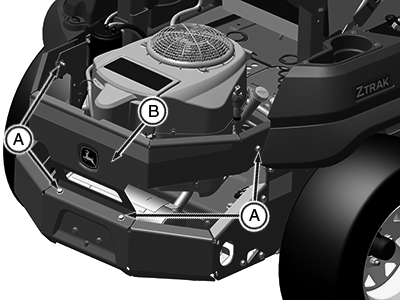

  2. APY04425
    APY04425-UN-30JUL18

    Z720E Model Shown

    Remove two bolts (A) on each side of machine.


  3. Remove and set aside engine access grille (B).

  4. Install engine access grille with four bolts (A).

MG39705,00000E7-19-20180913
