Checking Control Cables

Avoid injury! Touching hot surfaces can burn skin. The engine, components, and fluids will be hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

  1. Park machine safely on a level surface. (See Parking Safely in the Safety section.)

  2. APY11743
    APY11743-UN-01AUG18

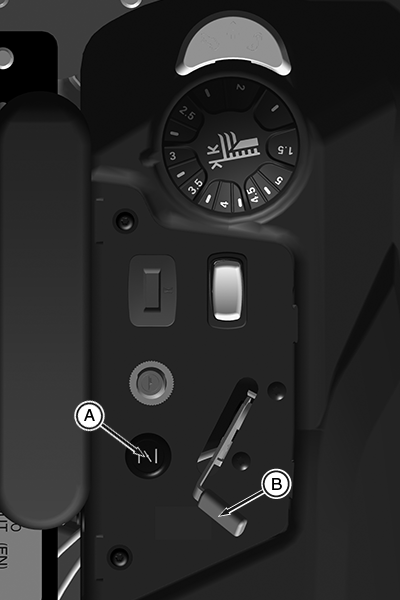

    Check for proper cable operation. Move choke knob (A) and throttle lever (B) from on to off/low to high positions while visually inspecting engine control panel.


  3. If the choke knob (A) and/or throttle lever (B) does not have full travel within their slots, use following procedures:


Adjusting Choke and Throttle Cables (Z735E and Z735M (Briggs & Stratton Engines))

Throttle Cable Adjustment

  1. Remove engine access grille.

  2. APY11748
    APY11748-UN-01AUG18

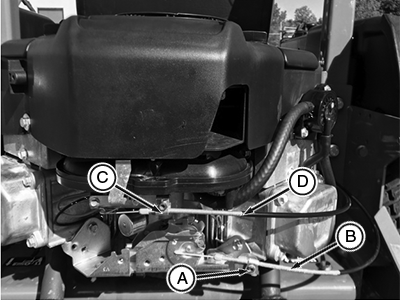

    Loosen screw (A) for the throttle cable housing (B).


  3. Move throttle lever all the way forward to the fast position. Move throttle lever backward 3.2 mm (1/8 in).

  4. Pull throttle cable outer housing (B) away from the carburetor control plate until it stops. Tighten screw (A) to secure.

  5. Verify cable operation and full range of throttle lever within the slot. Repeat if necessary.

  6. Install engine access grille.

Choke Cable Adjustment

  1. Remove engine access grille.

  2. Loosen screw (C) for the choke cable housing (D).

  3. Pull choke knob (A) all the way up to the full choke position. Push choke knob down 3.2 mm (1/8 in).

  4. Pull choke cable outer housing (D) away from the carburetor control plate until it stops. Tighten screw (C) to secure.

  5. Verify cable operation and full range of choke knob. Repeat if necessary.

  6. Install engine access grille.


Adjusting Choke and Throttle Cables (Z720E, Z730M, and Z740R (Kawasaki Engine))

Throttle Cable Adjustment

  1. Remove engine access grille.

  2. APY11747
    APY11747-UN-01AUG18

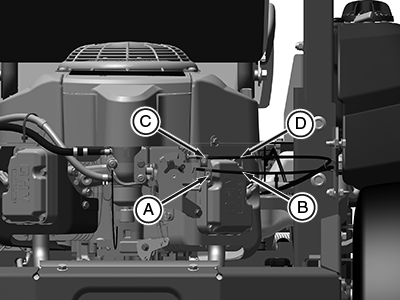

    Z720E Shown

    Loosen screw (A) for the throttle cable housing (B).


  3. Move throttle lever all the way forward to the full choke position. Move throttle lever backward 3.2 mm (1/8 in).

  4. Pull throttle cable outer housing (B) away from the carburetor control plate until it stops. Tighten screw (A) to secure.

  5. Verify cable operation and full range of throttle lever within the slot. Repeat if necessary.

  6. Install engine access grille.

Choke Cable Adjustment

  1. Remove engine access grille.

  2. Loosen screw (C) for the choke cable housing (D).

  3. Pull choke knob (A) all the way up to the full choke position. Push choke knob down 3.2 mm (1/8 in).

  4. Pull choke cable outer housing (D) away from the carburetor control plate until it stops. Tighten screw (C) to secure.

  5. Verify cable operation and full range of choke knob. Repeat if necessary.

  6. Install engine access grille.
