Raising and Lowering Operator Seat

Raising the Seat

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.
   APY11758-UN-13AUG18


   APY11757-UN-03SEP18

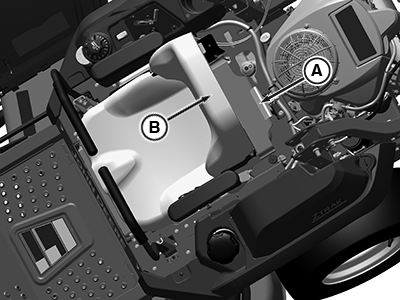

   Stand on side of the machine. Simultaneously, pull back seat latch (A) towards rear of machine and lift seat (B) into its fully raised position.

---




3. Rotate seat until it reaches the end of the prop rod (C) slot.

Lowering the Seat

1. Stand on the side of the machine.

2. Lower seat gently to operating position.
