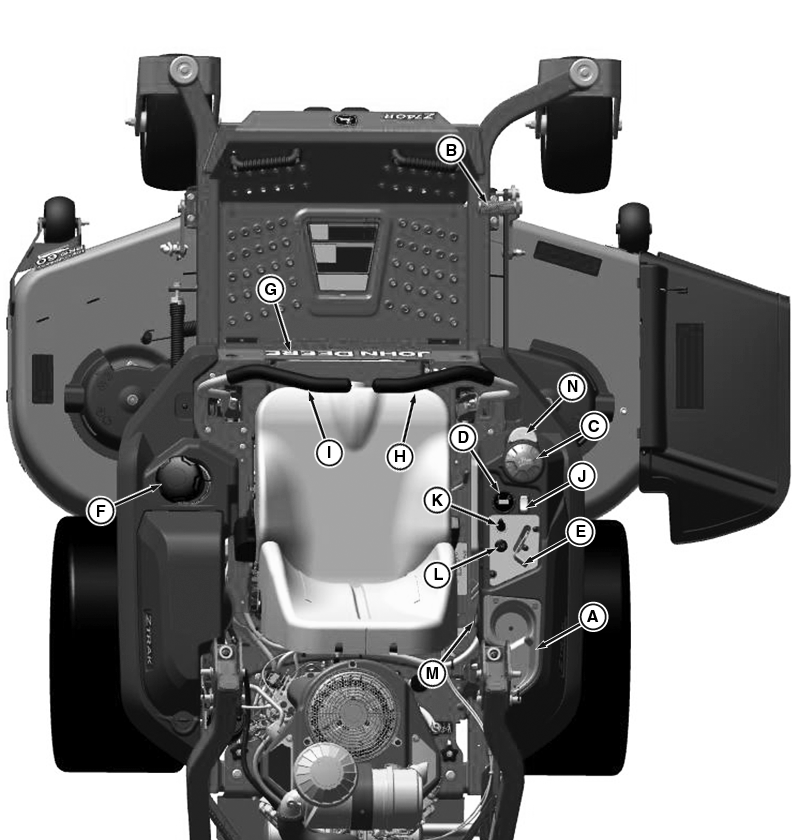

Z700R Series

APY12019-UN-11AUG18

A - Beverage Holder

B - Deck Lift Pedal

C - Height-of-Cut Adjustment Knob

D - Hourmeter, low oil pressure indicator light and low voltage battery light

E - Throttle Lever

F - Fuel Tank Cap

G - Fuel Sight Window

H - Right Motion Control Lever/Park Brake Lever

I - Left Motion Control Lever/Park Brake Lever

J - PTO Engagement Switch

K - Ignition Key Switch

L - Carburetor Choke Knob

M - Charging Power Port

N - Transport Lock Release
