Checking and Adjusting Neutral Creep

Check neutral creep with engine running and machine on level ground. Bring control levers to the drive position releasing the park brake. Slowly move out levers in T-slot until they are retained but making sure that the brakes do not engage (Brake engagement produces audible click).

If the machine creeps forward or reverses while in this position, adjust the motion control linkages.

1. Park machine on a flat surface. (See Parking Safely in the SAFETY section.)

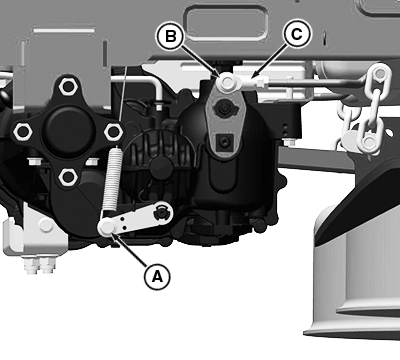

   APY09000-UN-30JUL18

---

• Remove drive tire (see instructions for safely jacking and supporting the machine.)
• Disconnect brake cable from transmission arm by removing bolt (A).
• Use two 15 mm wrenches to unbolt control rod (B) from transmission.
• Turn control rod out clockwise to decrease forward creep or counterclockwise to decrease rearward creep (C).
• Reassemble control rod

  Control Rod Bolt (B)	Torque	15 N·m (11 lb·ft)

• Reassemble brake cable

  Brake Cable Bolt (A)	Torque	36 N·m (27 lb·ft)

• Reassemble tire and torque

  Tire and torque	Torque	102 N·m (75 lb·ft)
