Cleaning Debris From Traction Drive System

Compressed air can cause debris to fly a long distance.

• Clear work area of bystanders.

• Wear eye protection when using compressed air for cleaning purposes.

• Reduce compressed air pressure to 210 kPa (30 psi).

To ensure proper cooling, keep the transmission cooling fins and surrounding area clean at all times. Operating the machine with obstructed cooling fins could cause transmission damage due to overheating.

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Allow engine and transmission oil reservoir to cool.

  3. Do not use chlorinated solvents or high-pressure water to clean grass and debris from transmission fan, cooling fins and reservoir.

    APY11765
    APY11765-UN-10AUG18

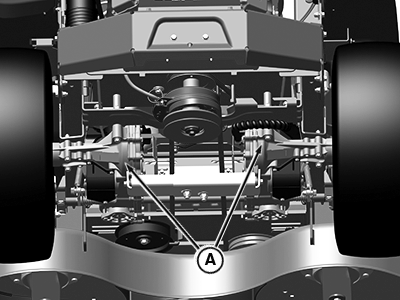

    Clean debris with high volume and low pressure, ensure that there is no thatch or grass clippings around the transmission (A).

SR99263,000004F-19-20180810
