Adjusting Tracking

If the machine does not track in a straight line while going forward, adjust the tracking:

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. APY12015
    APY12015-UN-10AUG18

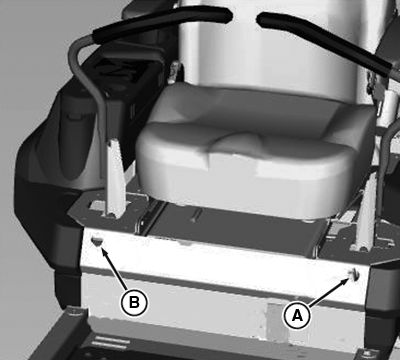

    Turn the adjusting screw as required:

    • If machine tracks to right, turn adjusting screw (A) clockwise one rotation.
    • If machine tracks to left, turn adjusting screw (B) clockwise one rotation.


  3. Test vehicle for proper tracking.

  4. Repeat the steps 2 and 3 as necessary to adjust the tracking.

  5. Return vehicle to service.
