Lifting Machine

1. Park machine safely on level ground. (See Parking Safely in the SAFETY section.)

   Avoid Injury! The machine can fall or slip from an unsafe lifting device or supports.

   • Use a safe lifting device rated for the load to be lifted.

   • Lower machine onto jack stands or other stable supports and block wheels before servicing.

   Avoid machine damage! Place jack stands under frame (A) not under transmission or transmission cross-member, when raising or supporting machine.

2.

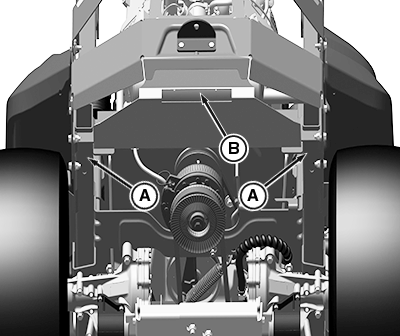

   APY08085-UN-31AUG18

   Safely lift rear of machine using the lifting point (B) at the center of the rear bumper. Place jack stands or other stable supports under frame locations (A).

---




3. If only lifting rear of machine, block front wheels remaining on ground to avoid movement of machine.

4.

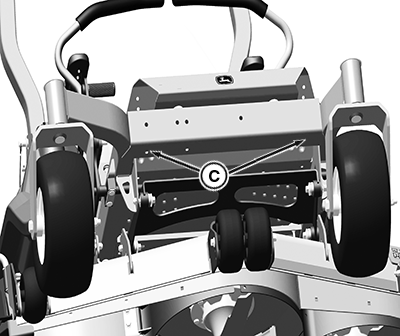

   APY08086-UN-31AUG18

   Safely lift front of machine at bottom of plates (C). Place jack stands or other stable supports near lift locations.

---




5. If only lifting front of machine, block rear wheels remaining on ground to avoid movement of machine.

6. To lower machine, lift front and/or rear of machine, remove jack stands or supports and then lower machine.
