Checking and Aligning Motion Control Levers

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. To adjust motion control lever height and orientation, remove the two bolts and nuts and reassemble according to diagram.

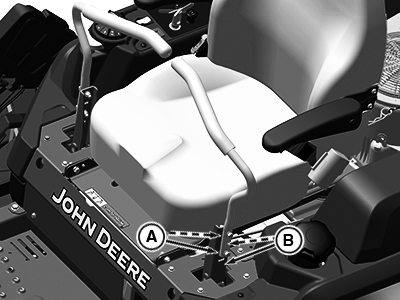

   APY08111-UN-09AUG18

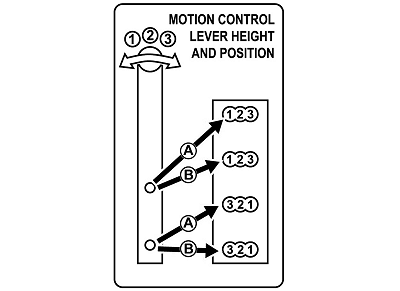

   GXT002159-UN-03JUN15

   • For highest motion control lever position, use holes (A).


   • For lowest motion control lever position, use holes (B).


   • For furthest forward motion control lever tilt, use position 1.


   • For furthest rearward motion control lever tilt, use position 3.



---




3.

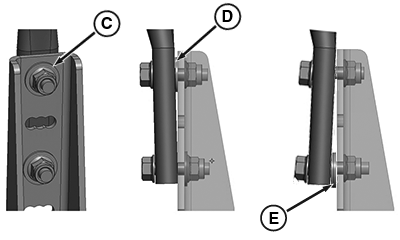

   APY08112-UN-10AUG18

   To adjust the amount of gap between the two motion control levers remove the washer (C) from behind the nuts and place as needed according to diagram.
   • To tilt motion control levers outwards place washer(D) on the top bolt.


   • To tilt motion control levers inwards place washer(E) on the bottom bolt.



---
