Checking ROPS Hardware

1. Park machine safely. (Refer to Parking Safely in the SAFETY section.)

2. When tightening ROPS hardware, tighten the bolt head side and not the nut.

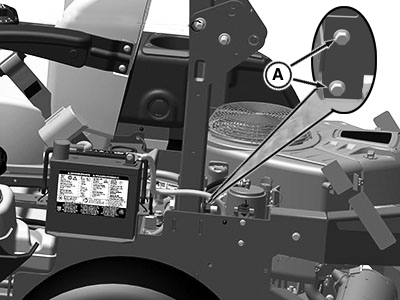

   APY08087-UN-11JUL18

   Tighten the two ROPS attaching bolts (A) on each side of ROPS to specification.

   ROPS Attaching Bolts	Torque	118 N·m (87 lb·ft)

---
