Lubricate Blade Spindle

Removal of belt shields and foot plate is not necessary to lubricate the spindles.

APY08113-UN-10AUG18

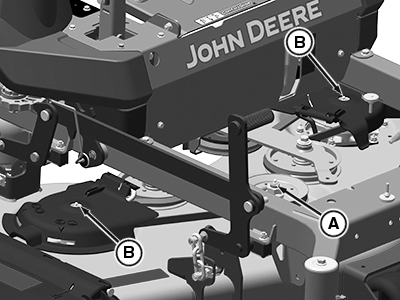

• Lubricate mower deck spindle grease fitting (A), located in the center of the deck.
• Lubricate mower deck spindle grease fittings (B).
