Adjusting Toe Board

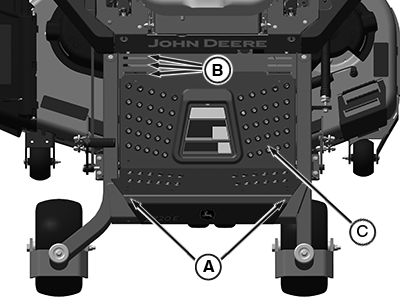

APY11761-UN-11AUG18

Z720E Model Shown

Toe board can be adjusted in three positions for improved ride comfort, each slot (B) is 2.5 cm (1 in.) apart.

Removing Toe Board

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Grasp upper corners (A) and lift toe board (C).

3. Remove toe board tabs from the slots (B).

Installing Toe Board

1. Install toe board tabs into desired slots (B) in the frame.

2. Lower toe board.
