Adjusting Foot Pegs (R Series)

Foot pegs (A) can be adjusted in two positions (C) for improved ride comfort.

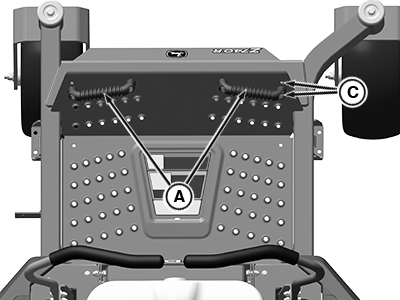

APY11753
APY11753-UN-10AUG18

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Loosen nut (B) using a 13mm wrench.

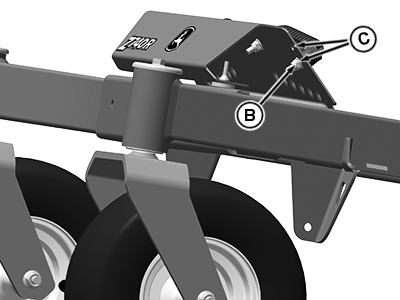

  3. APY11754
    APY11754-UN-10AUG18

    Adjust foot peg (A) to desired position (C).


  4. Tighten nut (B) to specification.
    Nut (B)Torque24 N·m (18 lb·ft)

  5. Repeat the same procedure for other foot peg.
