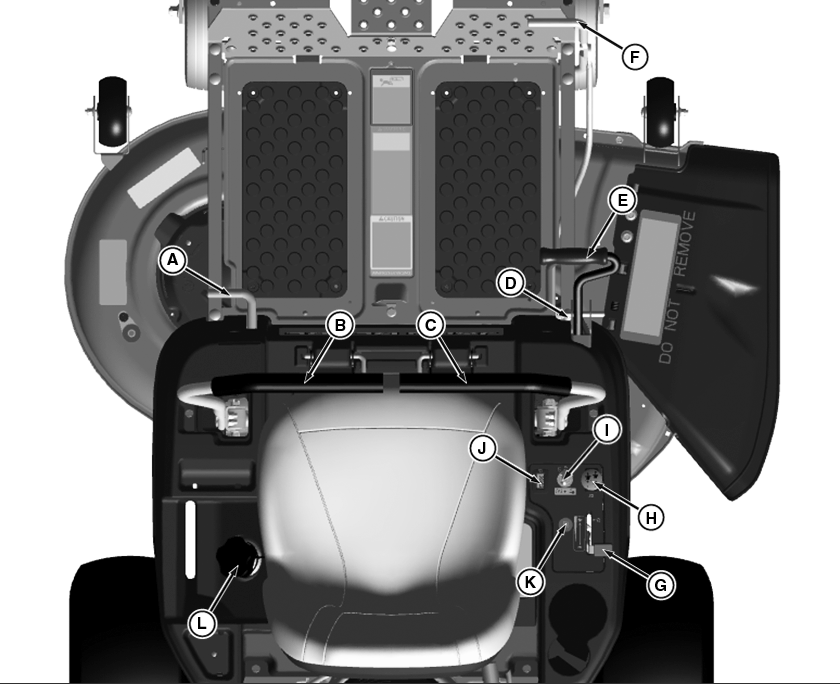

Operator Station Controls

APY04444-UN-24MAY18

A - Park Brake Lever

B - Left Motion Control Lever

C - Right Motion Control Lever

D - Deck Height Pin Tool

E - Mower Deck Lift Lever

F - Mower Deck Lift Pedal (If Equipped)

G - Throttle Control Lever

H - Mower Engagement Switch

I - Ignition Key Switch

J - Hourmeter

K - Low Fuel Indicator Light

L - Fuel Tank Cap
