Adjusting Seat

Fixed Seat

1. Tip seat forward.

2.

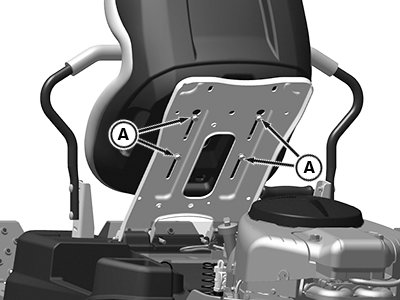

   APY04446-UN-24MAY18

   Loosen four seat bolts (A) with a 13 mm wrench or deck height pin tool.

---




3. Slide seat to desired position and tighten bolts to Specification.

   Bolts	Torque	12 N·m (9 lb·ft)

Adjustable Seat

1. Sit on operator seat.

2.

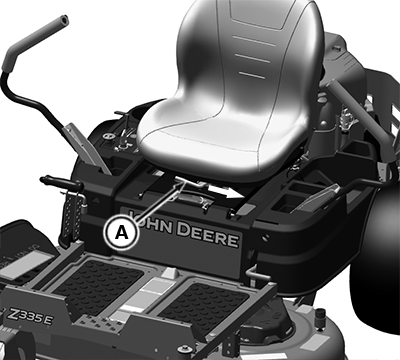

   APY04447-UN-24MAY18

   Push and hold the seat adjustment lever (A) toward the middle of the seat.

---




3. Slide seat forward or backward to desired position

4. Release lever
