Adjusting Motion Control Levers

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.

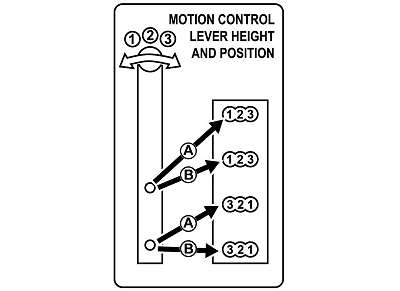

   GXT002159-UN-03JUN15

   To adjust motion control lever height, refer to the operator instruction label on the machine front panel and the instructions that follow.

---




3.

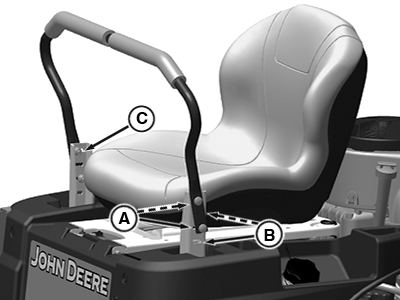

   APY04448-UN-24MAY18

   Remove two bolts and nuts and raise or lower each control lever to your comfort level.
   • For highest lever position, use holes (A).
   • For lowest lever position, use holes (B).



---




4. You can also adjust each motion control lever slightly forward or rearward (C) within slotted holes.
