Removing Mower Deck (42A)

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Allow engine and muffler to cool completely.

  3. Avoid injury! Rotating blades are dangerous.

    Before adjusting or servicing mower:

    • Disconnect spark plug wire(s) or battery negative (-) cable to prevent engine from starting accidentally.
    • Always wear gloves when handling mower blades or working near blades.

    Raise mower deck to the transport lock position.

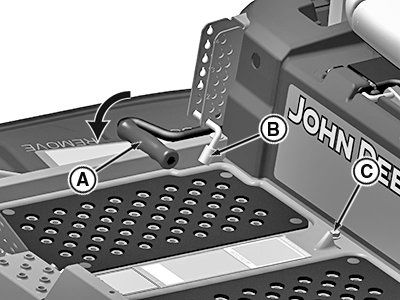

  4. PY43365
    PY43365-UN-08JUN17

    Remove deck height pin tool, lower handle to its lowest position (A) and install pin (B) just above lever to lock deck in lowered position.


  5. Remove bolt (C) to remove foot plate.

  6. Avoid injury! Component is spring-assisted and under tension. Injury can occur if spring-assisted component is released suddenly.

    Disconnect mower drive belt:

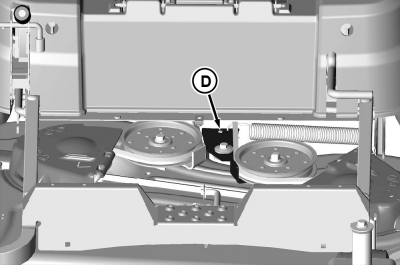

    • GXT001916
      GXT001916-UN-03JUN15

      Install 3/8 inch ratchet onto square hole (D) in tension arm and rotate counterclockwise to release tension on belt.

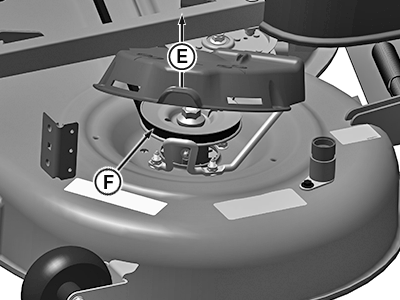

    • PY43366
      PY43366-UN-30MAY17

      Lift spindle cover (E) while removing mower belt (F) from left spindle sheave.
    • Remove belt from engine sheave.

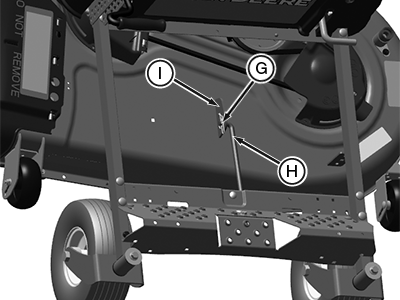

  7. APY04443
    APY04443-UN-18JUL18

    42A Mower Deck Front Shown

    Remove locking clip and washer (G) and front lift arm (H) from front deck bracket (I).


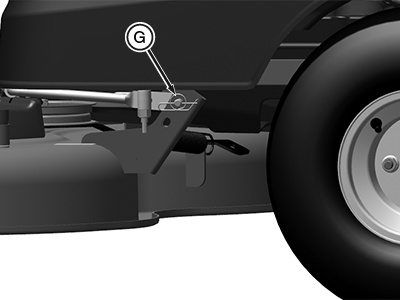

  8. APY04442
    APY04442-UN-18JUL18

    42A Mower Deck Left Side Shown

    Remove spring clip (J) and pin from each side of rear mower bracket.


  9. Raise lift linkage to transport lock position:

    1. Pull pin and raise mower lift lever fully upward.

    2. Install pin just below lift lever to lock into raised position.

  10. Rotate front caster wheels to maximize clearance.

  11. Slide mower out from under the machine.

    • Do not operate the machine without the mower deck: Machine may become unstable without the mower deck attached. Move machine only by hand. (See Moving Machine by Hand in OPERATING section.)

MG39705,00000D7-19-20180718
