Adjusting Cutting Height

Cutting height can be adjusted from approximately 25-100 mm (1-4 in.). When mower deck is in raised transport position, cutting height is approximately 100 mm (4 in.). Refer to the control lever label on the front platform.

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Inflate tires to the correct pressure. (See Checking Tire Pressure in the SERVICE MISCELLANEOUS section.)

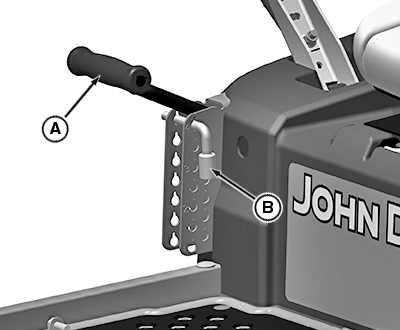

  3. PY43353
    PY43353-UN-30MAY17

    Pull upward on mower deck lift lever (A) and pull lever towards center of machine to lock in raised position.


  4. Insert the deck height pin tool (B) in the proper hole for the desired height of cut.

  5. Lower mower deck:

    • Lift slightly on mower deck lift lever, push slightly outward, and lower lift lever (A) onto pin (B).

MG39705,00000D9-19-20180718
