Moving Machine by Hand

When the bypass valve is open, the machine will have unrestricted motion.

• Do not open the bypass valve when the machine is stopped on an incline to prevent it from going downhill out of control.

Transmission damage may occur if the machine is towed or moved incorrectly:

• Move machine by hand only.
• Do not use another vehicle to move machine.
• Do not tow machine.

When the machine needs to be moved without starting the engine, use the bypass valves:

1.

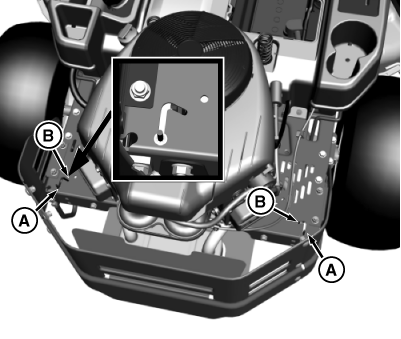

   MXT005332-UN-13JUN13

   Push bypass control rods (A) forward and into detent slot (B) to engage bypass valve.

---




2. Release park brake.

3. Push machine to desired location and lock park brake.

4. The bypass control rods should be disengaged before starting and operating the machine.

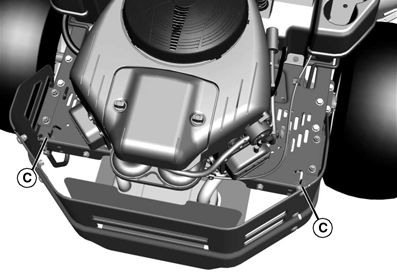

   MXAL42815-UN-09APR13

   Move both bypass control rods from their detent slot and push the rods back to the disengaged position (C).

---
