Transporting Machine on Trailer

Trailer capacity must exceed combined machine weight and attachment weight. (See Specifications section in operator’s manual).

Be sure trailer has all the necessary lights and signs required by law.

Avoid injury! Use extra care when loading or unloading the machine onto a trailer or truck. Machine wheels can go off the ramp or trailer, causing the machine to tip over.

  • To load, back slowly and in a straight line. Keep wheels away from drop-offs and edges.
  • Do not use two separate loading ramps. Use a full width loading ramp at least 30 cm (12 in) wider than machine to keep caster wheels from going off the ramp edge.
  • Use a trailer with sides.

  1. Park trailer on level surface.

  2. Raise mower deck before driving machine onto trailer.

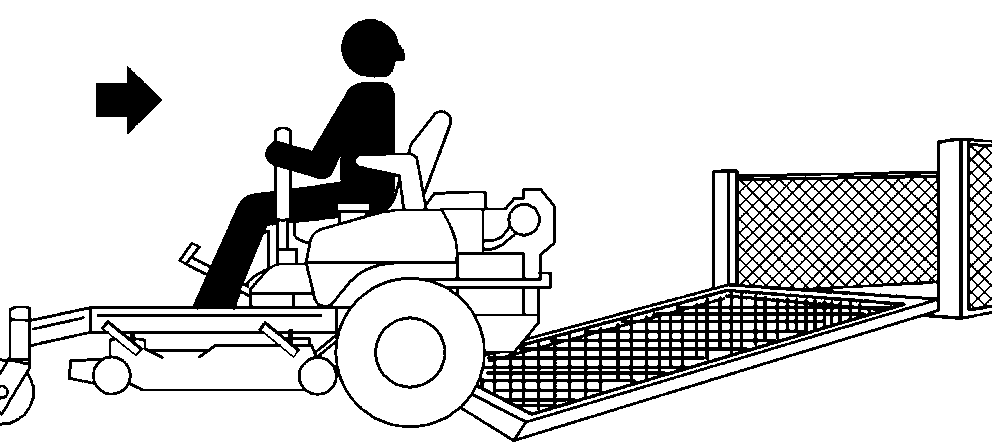

  3. MXAL42817
    MXAL42817-UN-09APR13

    Back machine onto heavy-duty trailer with full-width ramp.


  4. Lower mower deck completely.

  5. Lock park brake.

  6. Turn off machine and remove key.

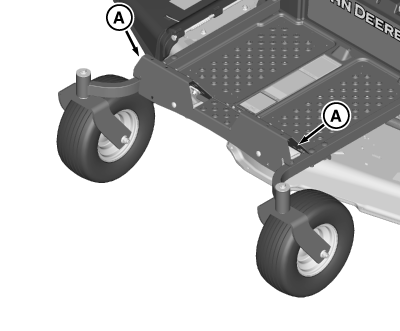

  7. GXT002963
    GXT002963-UN-18APR16

    Fasten front of machine at both sides of the frame at point (A) to trailer with heavy-duty straps, chains, or cables. Straps must be directed down, forward and outward from machine.

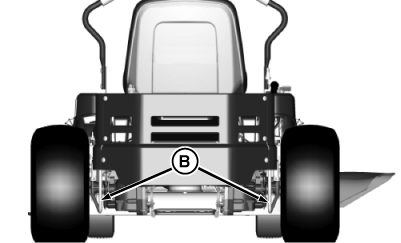

  8. MXT005334
    MXT005334-UN-22MAY13

    Fasten rear of machine at both sides of frame at points (B) to trailer with heavy-duty straps, chains, or cables. Straps must be directed down, rearward and outward from machine.

MX52301,0000F1C-19-20160418
