Removing and Installing Mower Deck Foot Plate

Avoid injury! Always operate the mower with the foot plate installed. Operating with the foot plate removed can cause serious injury.

Removing Foot Plate

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.

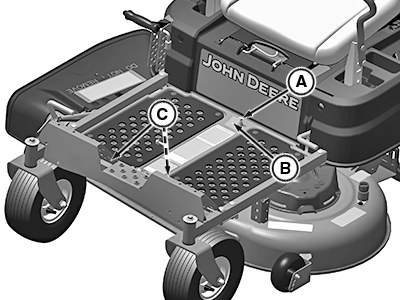

   PY43364-UN-02JUN17

   Remove bolt (A) with 13 mm socket on the deck height pin tool.

---




3. Rotate foot plate up using finger pull (B).

4. Remove foot plate.

Installing Foot Plate

1. Place tabs (C) of foot plate into slots in frame.

2. Lower foot plate.

3. Install bolt (A).
