Lifting Machine

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Avoid injury! The machine can fall or slip from an unsafe lifting device or supports.

   • Use a safe lifting device rated for the load to be lifted.
   • Lower machine onto jack stands or other stable supports and block wheels before servicing.



   Remove any material collection system attachments prior to lifting machine.

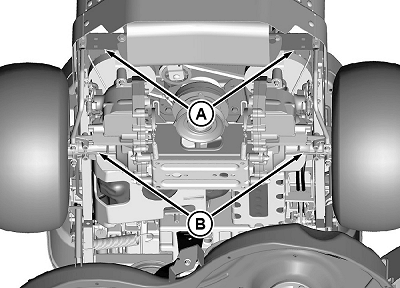

   GXT001608-UN-13MAY15

   Safely lift rear of machine frame points (A). Place jack stands or other stable supports onto transaxle locations (B).

---




3.

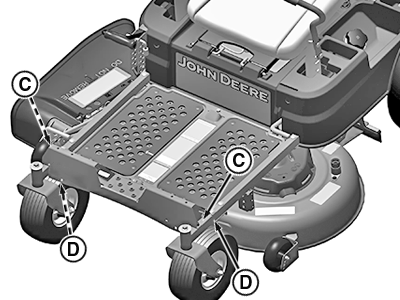

   PY43383-UN-08JUN17

   Safely lift front of machine at machine frame point (C). Place jack stands or other stable supports onto machine frame locations (D).

---




4. If only lifting front of machine, block rear wheels remaining on ground to avoid movement of machine.

5. To lower machine, lift front and/or rear of machine, and remove jack stands or supports. Lower machine.
