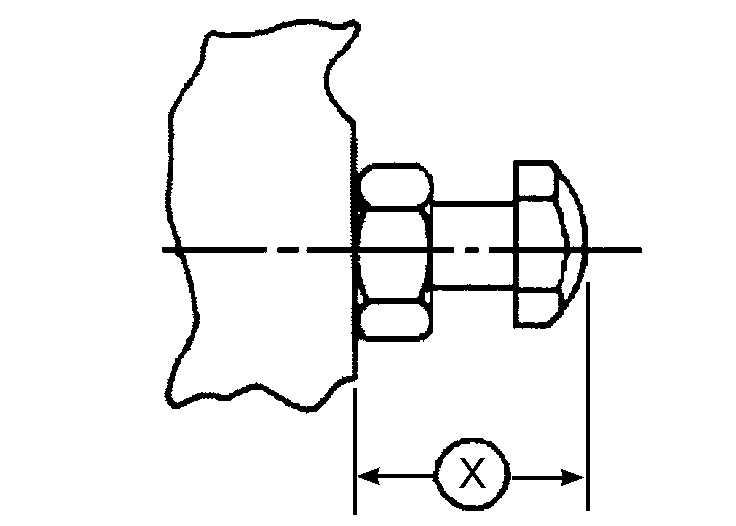

Front Tread and Steering Stop Settings › 5000 Series MFWD TractorsSee your tractor operator's manual to make tread setting adjustments. Some tread settings are "not approved" because of tire contact with the loader. |
|
| Tread Setting | ||||||
|---|---|---|---|---|---|---|
| (C) 1500 mm (59 in.) |
(D) 1600 mm (63 in.) |
(E) 1700 mm (67 in.) |
(F) 1800 mm (72 in.) |
(G) 1900 mm (75 in.) |
(H) 2000 mm (79 in.) |
|
| Front Tire Size | Steering Stop Length (X) | |||||
| 10.5/80-18 | 20 mm (0.8 in.) |
20 mm (0.8 in.) |
20 mm (0.8 in.) |
20 mm (0.8 in.) |
20 mm (0.8 in.) |
20 mm (0.8 in.) |
| 9.5-24 | 20 mm (0.8 in.) |
20 mm (0.8 in.) |
20 mm (0.8 in.) |
20 mm (0.8 in.) |
20 mm (0.8 in.) |
43 mm (1.7 in.) |
| 11.2-24 | 32 mm (1.3 in.) |
20 mm (0.8 in.) |
20 mm (0.8 in.) |
20 mm (0.8 in.) |
60 mm (2.4 in.) |
63 mm (2.5 in.) |
| 12.4-24 | 40 mm (1.6 in.) |
22 mm (0.9 in.) |
28 mm (1.1 in.) |
60 mm (2.4 in.) |
70 mm (2.8 in.) |
70 mm (2.8 in.) |
| 13.6-24 | 52 mm (2.1 in.) |
Not approved | Not approved | Not approved | Not approved | Not approved |
AG,WX20570,10 -19-22MAY98-1/1 |
