Mounting Frame Hardware
5000N Series Tractors

IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware after the first 10 hours of operation and again after every 50 hours.

Mounting Frame Hardware
  Description Size Torque Specification
B Cap Screw
Flat Washer
Flange Nut		 M20 x 50
21 x 42 x 5 mm
M20

475 N·m (350 lb-ft)
C Cap Screw
Flat Washer		 M16 x 70
17 x 34 x 4 mm		 240 N·m (175 lb-ft)
D Cap Screw
Flat Washer		 M16 x 50
17 x 34 x 4 mm		 240 N·m (175 lb-ft)
E Cap Screw
Flat Washer		 M16 x 35
17 x 34 x 4 mm		 240 N·m (175 lb-ft)
F Cap Screw
Flat Washer		 M20 x 60
21 x 42 x 5 mm		 475 N·m (350 lb-ft)

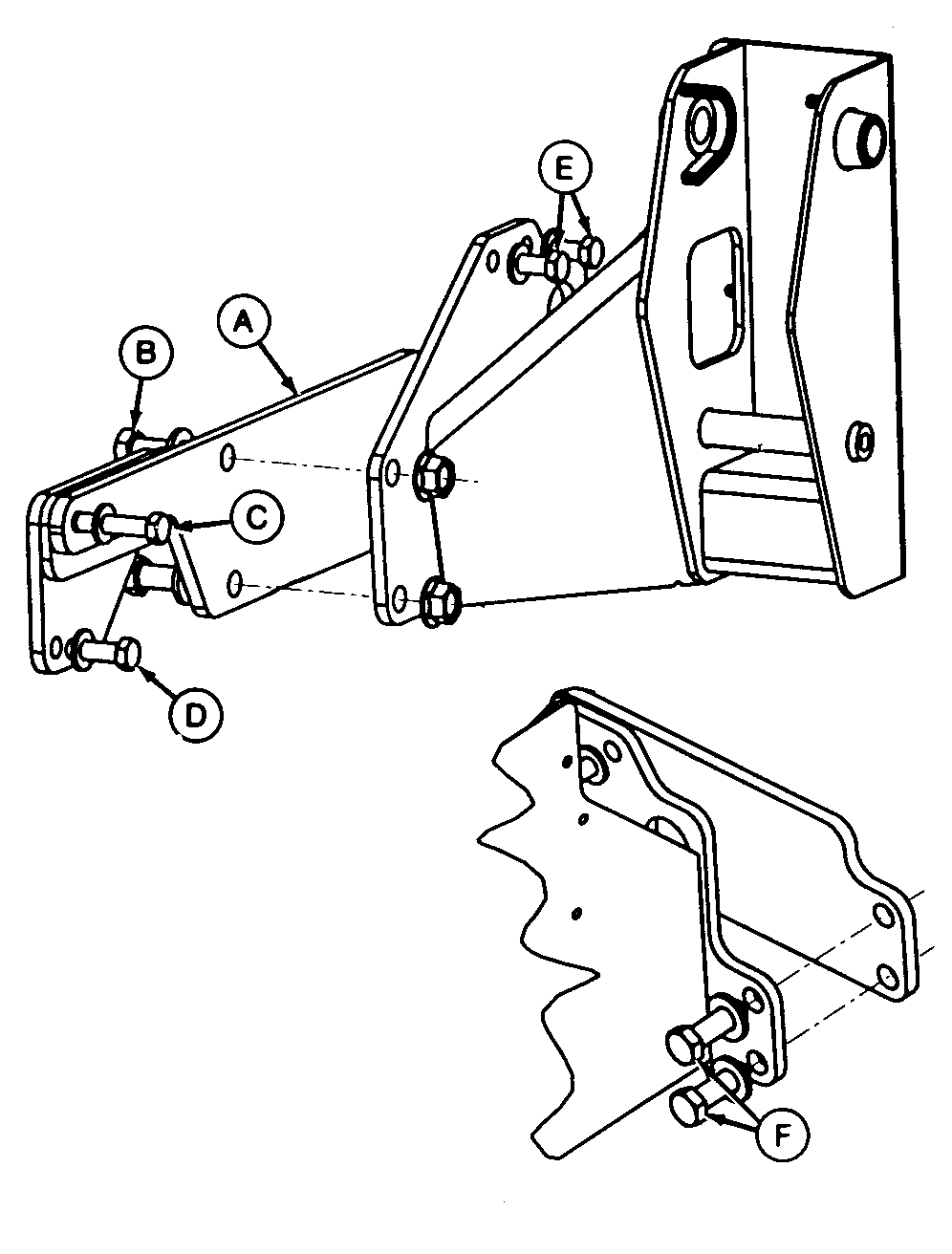

W01283
