520 Loader Capacity and Dimensions
|

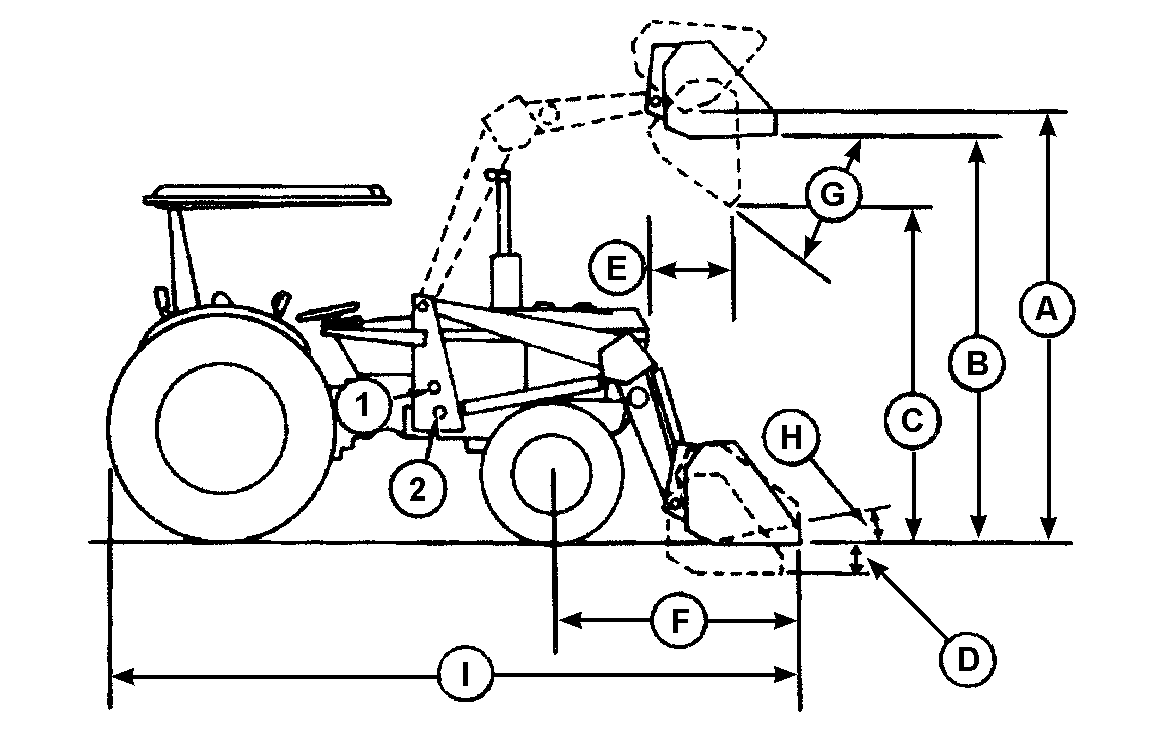

| Cylinder Position (1) | Cylinder Position (2) | ||
|---|---|---|---|
| Tractor Models | 5400 2WD | 5400 2WD | 5500N |
| Front Tires | 7.5-16 | 7.5-16 | 9.5-16 |
| Rear Tires | 16.9-28 | 16.9-28 | 14.9-24 |
| Capacity | |||
| Lift Capacity at Full Height | 900 kg (1980 lb) | 1134 kg (2500 lb) | 1134 kg (2500 lb) |
| Breakout Capacity | 12 500 N (2810 lb) | 15 000 N (3372 lb) | 15 000 N (3372 lb) |
| Dimensions | |||
| (A) Maximum Lift Height | 3100 mm (122 in.) | 2800 mm (110 in.) | 2710 mm (108 in.) |
| (B) Clearance, Bucket Level | 2975 mm (117 in.) | 2670 (105 in.) | 2560 mm (101 in.) |
| (C) Clearance, Bucket Dumped | 2535 mm (100 in.) | 2215 mm (87.2 in.) | 2180 mm (85.8 in.) |
| (D) Digging Depth | 280 mm (11 in.) | 120 mm (4.7 in.) | 220 mm (8.7 in.) |
| (E) Reach at Full Height, Dumped | 364 mm (14.3 in.) | 713 mm (28 in.) | 750 mm (29.5 in.) |
| (F) Reach at Ground, Level Bucket | 1575 mm (62 in.) | 1575 mm (62 in.) | 1775 mm (69.8 in.) |
| (G) Maximum Dump Angle | 37.4° | 40° | 34° |
| (H) Roll Back on Ground | 24° | 24° | 24° |
| (I) Overall Length | 4370 mm (172 in.) | 4370 mm (172 in.) | 4370 mm (172 in.) |
| Highest Point on Loader: | |||
| Bucket on the Ground | 1530 mm (60 in.) | 1530 mm (60 in.) | 1440 mm (56.7 in.) |
| Rolled Back, 300 mm (12 in.) off Ground | 1530 mm (60 in.) | 1530 mm (60 in.) | 1440 mm (56.7 in.) |
|
Capacities are shown measured to bucket bottom midpoint, using a 1550 mm (61 in.) bucket. Objects such as round bales or bins on a forklift move the weight out from this point, decreasing lift capacity. Dimensions are in compliance with ASAE Standard S301.2. |
NOTE: (Specifications and design subject to change without notice) |
AG,WX20570,122 -19-01JUL98-1/1 |
