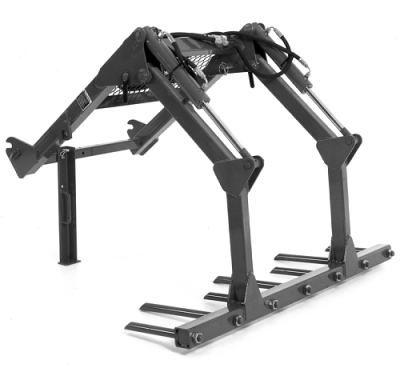

Round Bale/Silage Grapple

The grapple is approved for use with 540 Loaders With Mechanical Self-Level only. It is not approved for use on 520 Loaders or 540 Loaders Without Mechanical Self-Level.

Use the round bale/silage grapple to handle loose or chopped forage, silage or round bales up to a weight of 450 kg (1000 lb) and a diameter of less than 1372 mm (54 in.).

(For assembly, see instruction provided with grapple.)
