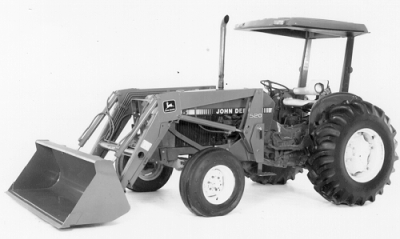

Approved Tractors For 520 Loaders
All tractors with SOUND-GARD ® Body, except 5000 Series, are not approved for 520 Loaders. All tractors except 5000 Series require side frames (tractor equipment.) |
|
CAUTION:
To help prevent personal injury or death caused by tractor rollover, be sure tractor is equipped with rollover protective structure (ROPS).
| Tractors Approved for 520 Loaders | |||||
|---|---|---|---|---|---|
| Tractor Model Series | |||||
| 5000 | 55 | 50 | 40 | 30 | 20 |
| 5200 | 2155 | 2150 | 1040 | 830 | 820 |
| 5210 | 2255 | 2350 | 1140 | 1030 | 920 |
| 5300 | 2355 | 2550 | 1640 | 1130 | 1020 |
| 5310 | 2355N | 1840 | 1530 | 1120 | |
| 5310N | 2555 | 2040 | 1630 | 1520 | |
| 5310N MFWD | 2140 | 1830 | 2020 | ||
| 5400 | 2240 | 2030 | 2120 | ||
| 5410* | 2440 | 2130 | |||
| 5500* | |||||
| 5500N | |||||
| 5510* | |||||
| 5510N | |||||
| * To help prevent damage to the loader when used on 5410, 5500 and 5510 Tractors: 1. Use only for light duty applications. 2. Do not exceed the tractor ballast requirements shown in this section |
|||||
|
Sound-Gard is a registered trademark of Deere & Company | AG,WX20570,2 -19-20MAY98-1/1 |
