Bucket Tines

Use tines to handle materials, manure or silage.

Tines extend approximately 305 mm (12 in.) from cutting edge.

Number of Tines Used
Bucket Width Tines
1550 mm (61 in.) 7
1850 mm (73 in.) 9
2150 mm (85 in.) 11



causym CAUTION: Help prevent personal injury from accidental lowering of bucket. Place safety stands under bucket when installing tines.

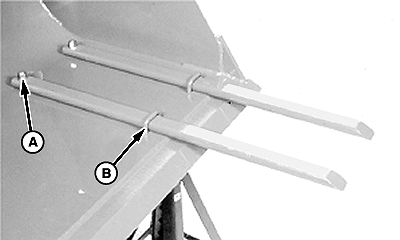

Install each tine using:

  • (A) M12 x 40 cap screw, flat washer and nut on top.
  • (B) U-bolt, two flat washers and M10 nuts.
W00363
W00230

AG,WX20570,55 -19-08JUN98-1/1
