Operating Loader With Joystick

Operate loader from operator's seat only. Remain at controls until operating cycle is complete.

Lever returns to NEUTRAL by itself from all positions except FLOAT. Pull lever back to release from FLOAT.

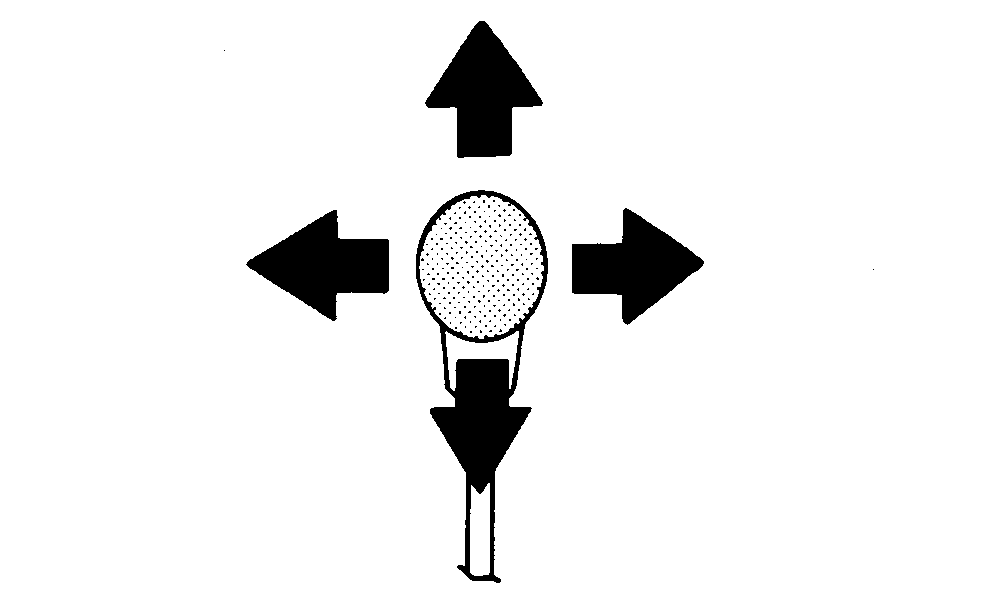

Lever Movement Loader Operation
Forward Boom Lower
Locked Forward Boom Float
Back Boom Raise
To Right-Hand Side Bucket Dump
To Full Right-Hand Side* Bucket Fast Dump
To Left-Hand Side Bucket Roll Back
* Slightly exta effort is required to move lever to the full right-hand position. (Bucket cylinder force is reduced in Fast Dump. Use it only for dumping materials.)



NOTE: Oil flow limitations may not allow you to do two loader operations at one time such as RAISE and ROLL BACK. The operation that requires the least hydraulic force will move first.

W00583
