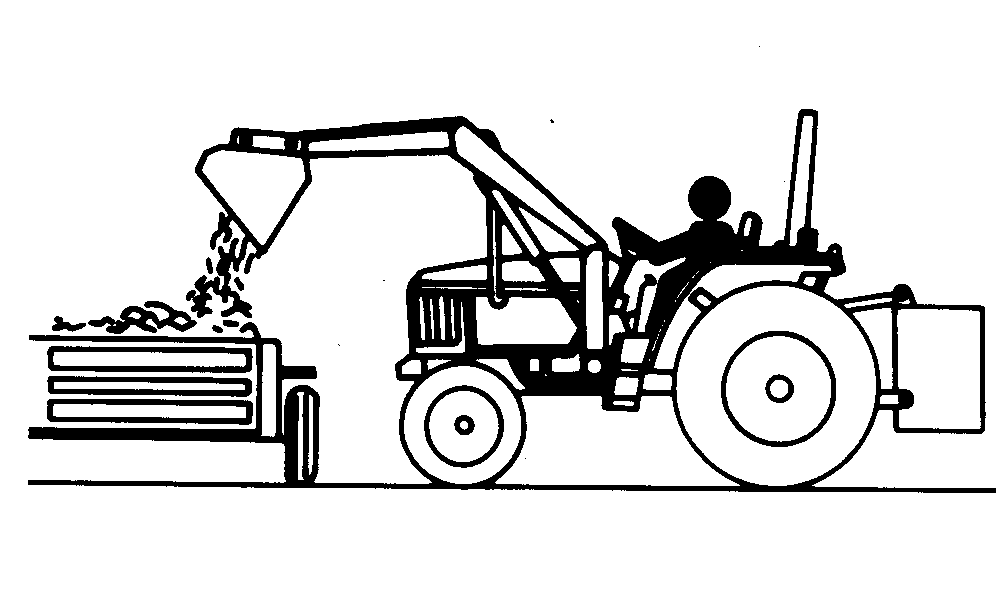

Dumping the Bucket

Loaders operated with one lever control have a FAST DUMP feature.

To dump the bucket, move the control lever to the right-hand side. Slightly extra effort is required to move lever beyond DUMP to FAST DUMP.

Bucket cylinder force is reduced in FAST DUMP position. Use it only for dumping materials.

AG,WX20570,86 -19-25JUN98-1/1
