OMW44993: 520 and 540 Loaders, Block File: AG_WX20570_87_19

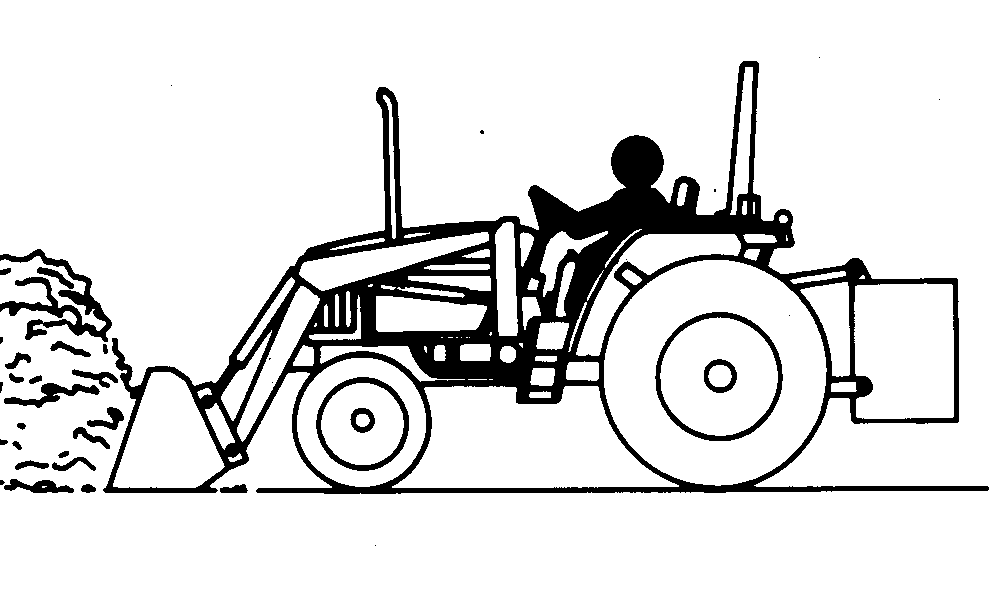

1. Approach and enter pile with bucket level. If the pile is high, remove the top first.

NOTE: Bucket top is parallel to bottom. Bucket is level when top is level. Also, a bucket level indicator attachment is available.

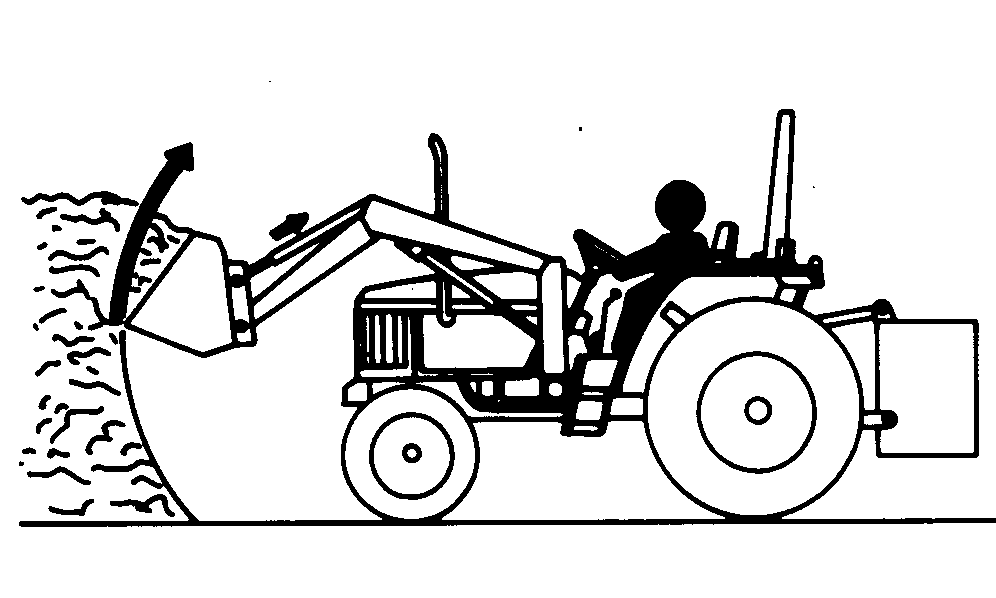

2. Move forward slowly, lifting the loader and rolling back bucket.

NOTE: Overfilling the bucket in heavy or packed material may cause the loader to stall. If loader stalls, back up or take less material.

AG,WX20570,87 -19-25JUN98-1/1
