Bucket Level Indicator

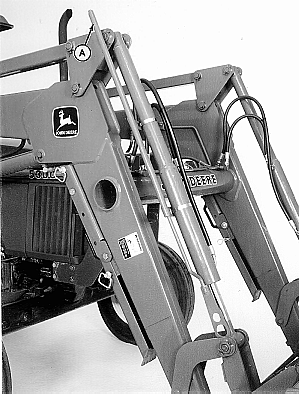

Indicator (A) is mounted to the outside of the bucket cylinder on 540 Loaders with mechanical self-level. It is mounted to the inside of the bucket cylinder on 520 Loaders and 540 Loaders without mechanical self-level.

Installation instructions are provided with the loader predelivery manual.

NOTE: Indicator position for a bucket will not be the same for a bale fork or forklift. When using it for an attachment other than a bucket, level the attachment and put a new mark on rod at top of tube.

WX,520,A,3 -19-20JUL95-1/1
