Lubricate 520 Loader and 540 Loader without Mechanical Self-Level
Every 10 Hours

CAUTION: Help prevent personal injury caused by unexpected movement of the loader. Lower loader to the ground, engage parking brake or place transmission in "PARK", shut off engine and remove key before lubricating or servicing the loader.

Dump bucket and lower to the ground.

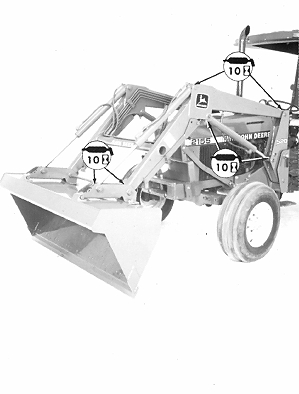

Lubricate twelve fittings.

WX,520,LB,2 -19-20JUL95-1/1
