Identifying Hose Connections
Loader Operated with Tractor Selective Control Valves
W00250
W00312

Separated Couplers

W00251

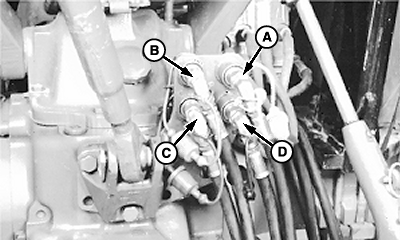

Stacked Couplers

W02864

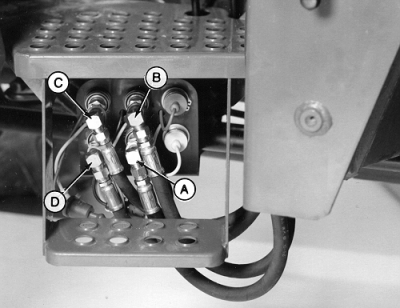

Mid-Couplers

WX,520,SV,18 -19-10APR92-1/2

causym CAUTION: Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to tractor selective control valves as shown below.

NOTE: Hose connections are identified by color keyed dust covers. Colored plugs are installed on the tractor selective control valve outlets at loader predelivery. Corresponding colored caps are installed on loader hose ends.

Use the following chart to identify hoses and replace missing colored dust covers:

  Loader Cylinder Work Port Color of Dust Cover
A Bucket Cylinder Head End Yellow
B Bucket Cylinder Rod End Black
C Lift Cylinder Head End Blue
D Lift Cylinder Rod End Red



WX,520,SV,18 -19-10APR92-2/2
