Assemble and Install Pedestal and Intermediate Driveline

1. Remove lock nut (B), washer (C) and tapered pin (A) from slip clutch hub.

A-Tapered Pin
B-Lock Nut
C-Washer

AG,OUMX005,818 -19-03JUN99-1/8

2. Remove two quick-lock pins (B) and raise PTO shield (A).

3. Remove paint from gear case input shaft using a wire brush.

4. Apply multipurpose grease on input shaft.

A-PTO Driveline Shield
B-Quick-Lock Pin (2 used)

AG,OUMX005,818 -19-03JUN99-2/8

5. Align splines of slip clutch hub with gear case input shaft and slide hub onto shaft.

6. Align hole in hub with groove in input shaft and install tapered pin, washer and lock nut (A). Install tapered part of pin facing groove around input shaft. Tighten lock nut to specifications.

Specification

7. Remove 5 mm hex wrench (provided) from side of driveline.

8. Adjust four set screws (B) to the desired setting:

• Storage; All the way IN (turn clockwise)
• Operation; All the way OUT (turn counterclockwise)

A-Lock Nut
B-Set Screw (4 used)

AG,OUMX005,818 -19-03JUN99-3/8

9. Attach clip (A) inside PTO shield, on right-hand side, away from clutch. Store hex wrench in clip.

A-Clip

AG,OUMX005,818 -19-03JUN99-4/8

10. Lower PTO shield and install quick-lock pins.

11. Attach chain (A) at location shown.

A-Shield Chain

AG,OUMX005,818 -19-03JUN99-5/8

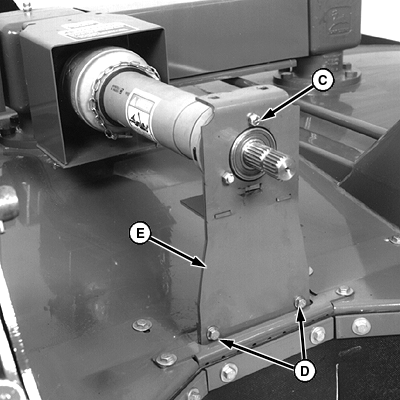

A-Eccentric Locking Collar
B-Bearing and Flangettes

C-Round Head Bolt and Lock Nut, M10 x 25 mm (3 used)

D-Cap Screws, Lock Washers and Lock Nuts, M10 x 30 mm

E-Pedestal Support

IMPORTANT: Install bearing with shoulder facing away from pedestal support. With pedestal support installed on machine, shoulder should be facing toward rear of machine.

12. Attach bearing and two flangettes (B) to pedestal support (E) using three M10 x 25 mm round head bolts and lock nuts (C).

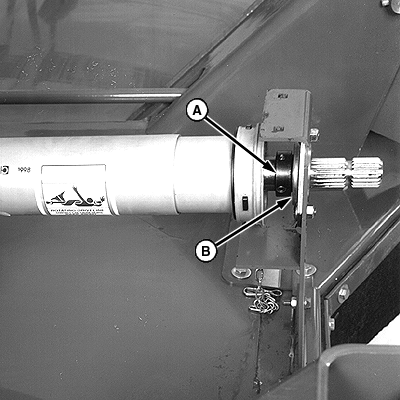

13. Install eccentric locking collar (A) onto end of intermediate driveline shaft.

14. Slide bearing and pedestal assembly onto end of intermediate driveline shaft.

15. Attach pedestal support to cutter sill using two M10 x 30 mm cap screws and lock nuts (D).

IMPORTANT: Always tighten locking collar in direction of rotation.

16. Tighten eccentric locking collar (A) clockwise and tighten set screw.

AG,OUMX005,818 -19-03JUN99-6/8

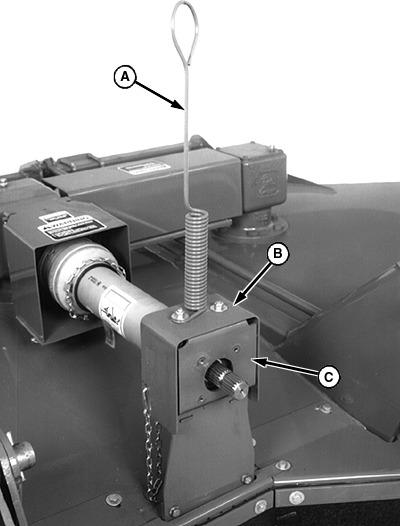

17. Install bracket (C) and shield (B) with one M10 x 30 mm round head bolt and lock nut. Leave loose. Install shield (B) with decal facing left-hand side of machine.

18. Install hose holder (A) with one M10 x 35 mm round head bolt, 10.5 x 30 x 2.5 mm washer and lock nut. Leave loose.

19. Push bracket (C) rearward as far as possible. Tighten bracket/shield and hose holder mounting hardware.

A-Hose Holder
B-Shield
C-Bracket

AG,OUMX005,818 -19-03JUN99-7/8

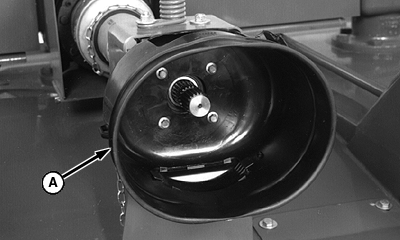

20. Install PTO shield (A) with four 8.4 x 16 x 1.6 mm washers and M8 x 16 mm cap screws.

21. Route hydraulic hose through hose holder.

A-PTO Shield

AG,OUMX005,818 -19-03JUN99-8/8
