Selecting Tractor PTO Speed

IMPORTANT: Never operate a cutter equipped for 540 rpm PTO drive with a tractor equipped with 1000 rpm PTO.

Always run tractor at rated PTO speed. Overspeed will cause damage to drive system.

Tractor PTO shaft must match cutter driveline according to the following table. Cutters are shipped with a PTO driveline for the following diameter PTO shafts:

  • HX10-35 mm (1-3/8 in.) shaft
  • HX14-35 or 44 mm (1-3/8 or 1-3/4 in.) shaft

Model No. Hitch Type kW (hp) PTO Driveline Configuration (rpm)
  540 1000
HX10 Lift-Type 60 (80) X X
HX10 Pull-Type 37 (50) X X
HX10 Semi-Mount 37 (50) X N/A
HX14 Lift-Type 67 (90) N/A X
HX14 Pull-Type 45 (60) X X



Refer to your tractor Operator's manual to change PTO stub shaft, if necessary.

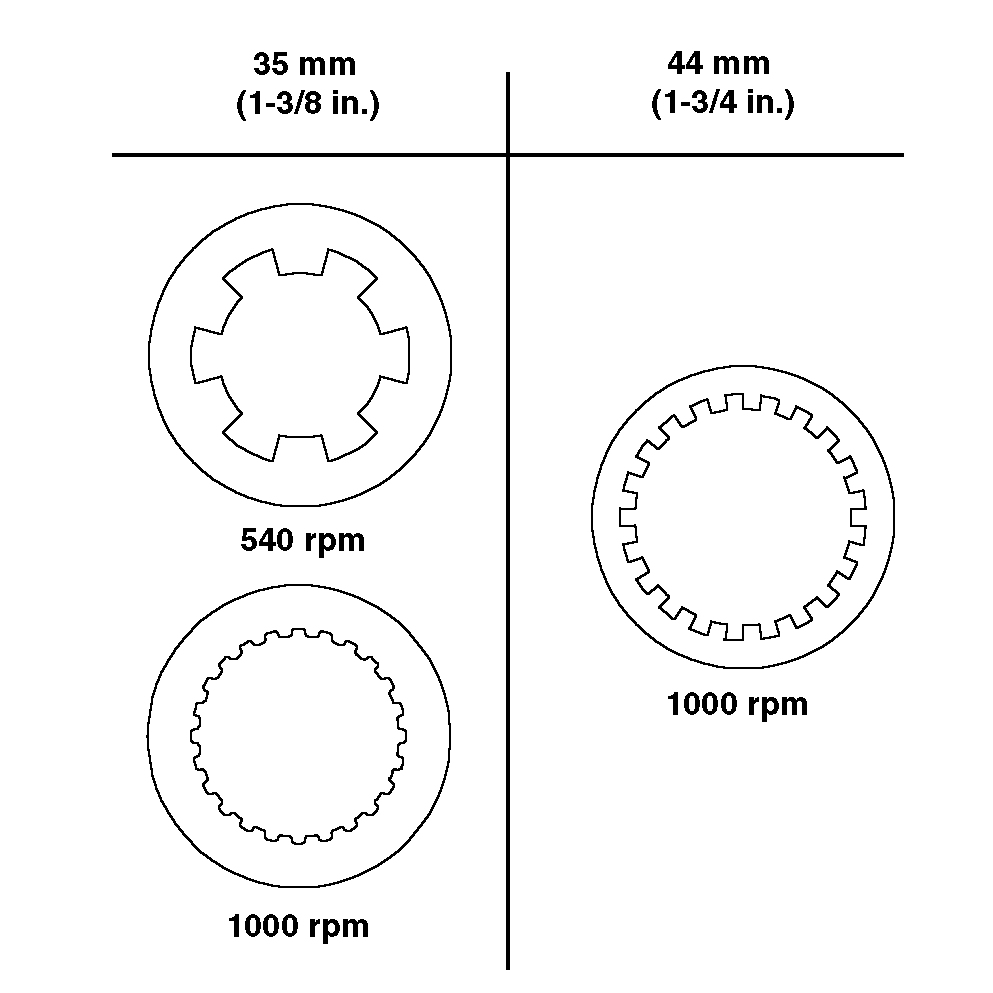

W03524

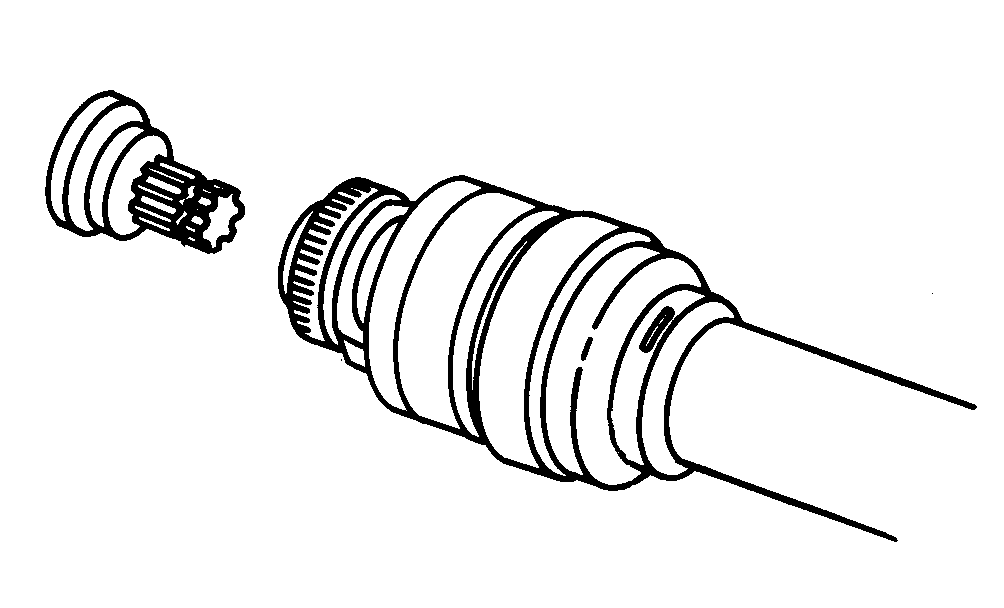

Driveline Shaft Size

W02538

AG,OUMX005,896 -19-26JUN99-1/1
