Replacing Skid Shoes

causym CAUTION: When servicing skid shoes, it will be necessary to work underneath cutter. Be sure to support cutter frame at all four corner locations with safety shop stands to prevent accidental lowering. Do not position safety stands under axle or wheel supports because these components can rotate.

1. Lower cutter onto safety shop stands.

TS260

AG,OUMX005,917 -19-29JUN99-1/2

2. Remove mounting hardware and skid shoe (A).

3. Install new skid shoe. Install mounting hardware as follows:

  • Side-Lock nuts on outside of cutter.
  • Front-Lock nut on inside of cutter

4. Repeat on opposite side.

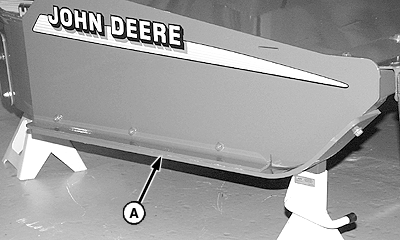

A-Skid Shoe

W03558

Skid Shoe-Right-Hand Side Shown
