Positioning Cutter-Semi-Mount with Hydraulic Offset (HX10)

Operate tractor SCV to offset the cutter 0-330 mm (0-13 in.) to either right or left-hand side of tractor centerline.

  • Offset cylinder retracted-Cutter offset to left-hand side of tractor
  • Offset cylinder extended-Cutter offset to right-hand side of tractor
W03575

Offset-Left-Hand Side

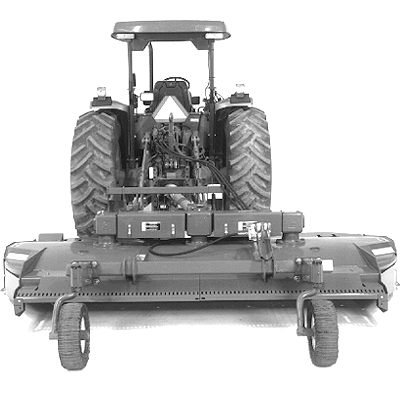

W03577

Offset-Right-Hand Side

AG,OUMX005,935 -19-02JUL99-1/1
