Remove Shipping Dunnage and Parts

causym CAUTION: To help prevent bodily injury from accidental lowering of the cutter, attach a lifting strap or chains to cutter rear support frame and a hoist.

1. Wrap lifting strap or chains around cutter rear support frame and attach to a hoist. Raise machine and rest on level ground in vertical position.

2. Remove all shipping bands, wires and loose parts from around the machine.

TS219

AG,OUMX005,961 -19-08JUL99-1/2

causym CAUTION: It will be necessary to work underneath cutter when installing blades. Be sure to support cutter frame at all four corner locations with safety shop stands to prevent accidental lowering.

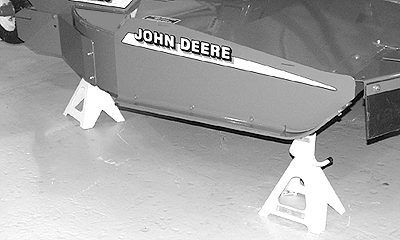

3. Lower machine onto safety shop stands as shown.

W03496

AG,OUMX005,961 -19-08JUL99-2/2
