Install Blades-HX10

NOTE: Suction blades have cutting edge on one side only. Note blade rotation when installing blades. (See DIRECTION OF BLADE ROTATION in this section.)

Install blades using a 3/4 in. drive socket set, 1-1/2 in. socket, short extension and torque multiplier.

Manually rotate blade holder to align blade mounting hole in holder with access hole in top of deck. Position torque multiplier, as shown, to install blades.

Tighten lock nut (A) according to specifications.

Specification

Blade Hardware -Torque 987 N·m (728 lb-ft)

IMPORTANT: Operating with loose blade hardware will damage the blade holder and blades. Retighten after the first eight hours of operation.

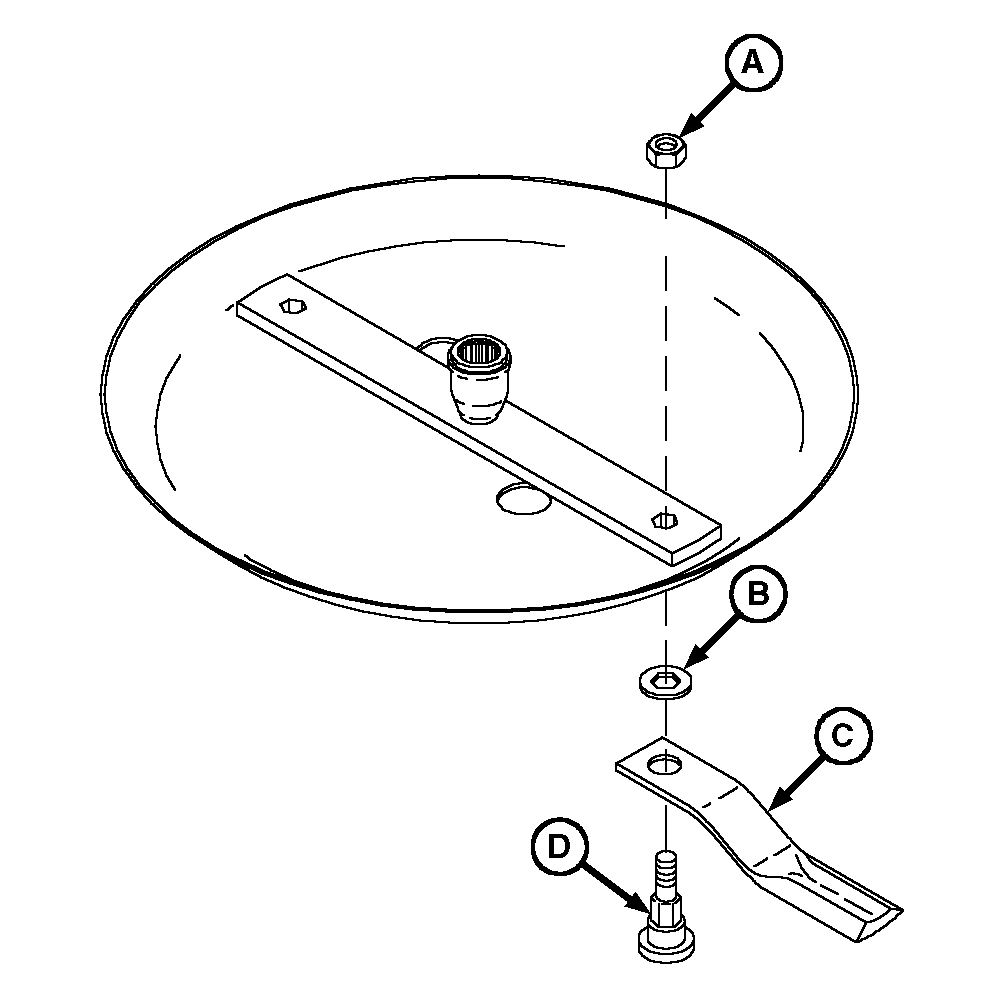

A-Lock Nut
B-Washer
C-Blade
D-Blade Bolt

W03540
W03556

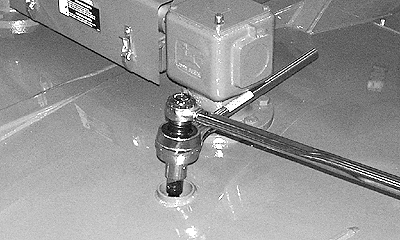

Position to Tighten

AG,OUMX005,963 -19-08JUL99-1/1
