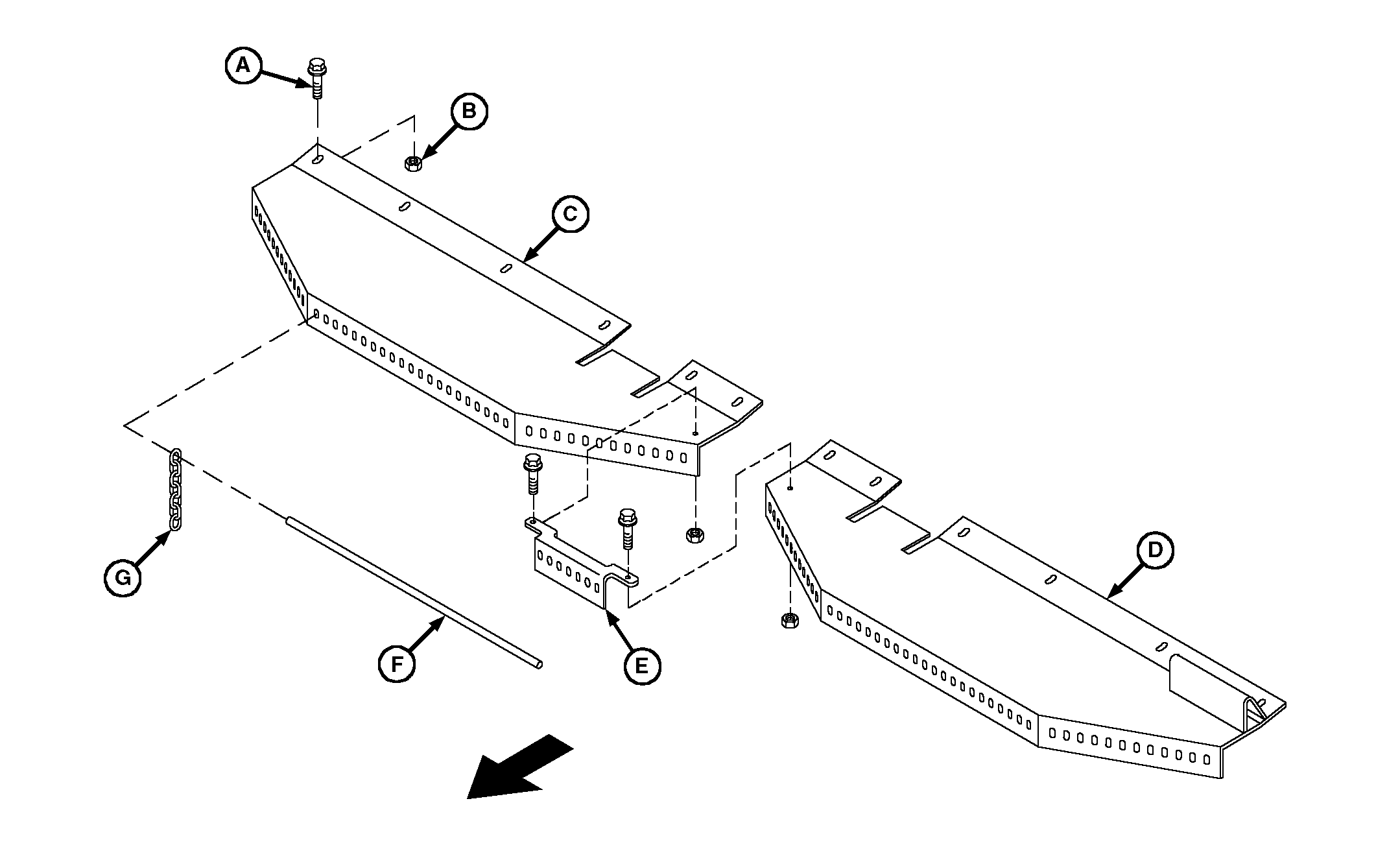

A-Flange Head Cap Screw, M10 x 30 mm (16 used)

B-Lock Nut, M10 (16 used)
C-Right-Hand Shield

D-Left-Hand Shield
E-Bracket

F-Rod (various sizes)
G-Chain Link (121 used)

Tighten all mounting hardware AFTER all shields have been installed.

AG,OUMX005,968 -19-08JUL99-1/1
